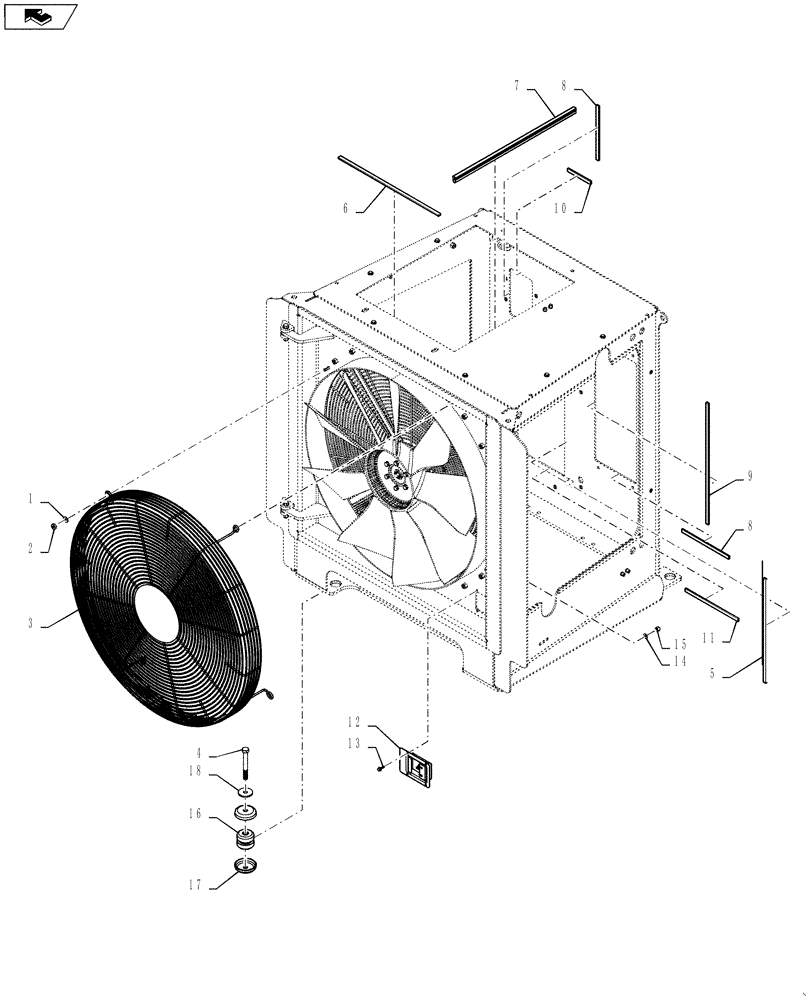

Запчасти Case 1121F (39.126.04) - COOLING SYSTEM FRAME (39) - FRAMES AND BALLASTING

1

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

Washer

12шт.

2

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Lock Nut

6шт.

3

84338665

GUARD

1шт.

4

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

Bolt

2шт.

5

84342723

SEALING STRIP

Sealing Strip

2шт.

6

84412047

SEAL

Sealing strip

3шт.

7

84342722

SEAL

Sealing Strip

2шт.

8

84412050

SEAL

Sealing Strip

4шт.

9

84342717

SEALING STRIP

Sealing Strip

2шт.

10

84342723

SEALING STRIP

Sealing Strip

2шт.

11

84342723

SEALING STRIP

Sealing Strip

2шт.

12

R56221

LATCH

1шт.

13

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

Bolt

4шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Washer

4шт.

15

832-10406

NUT,M6 x 1, Cl 8

Nut

4шт.

16

84393925

MOUNT

Mount

4шт.

17

84376267

CUP

Cup

6шт.

18

895-30103

WASHER,M16 x 56 x 5

Washer

4шт.
