Запчасти Case 1121F (39.125.04) - SOUND PANEL WITH AXLE COOLER (39) - FRAMES AND BALLASTING

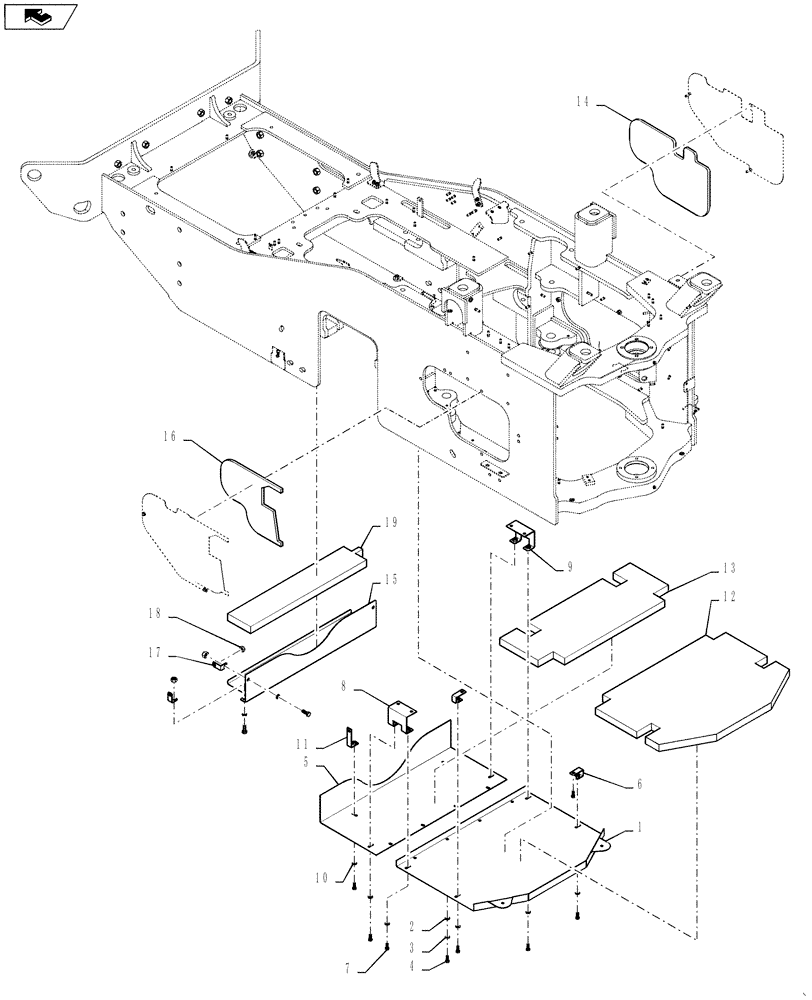

Схема запчастей Case 1121F - (39.125.04) - SOUND PANEL WITH AXLE COOLER (39) - FRAMES AND BALLASTING
16
13
11
10
4
9
home
3
1
8
15
6
12
5
7
18
2
14
19
17

Артикул

Название

Примечание

Количество

1

84424028

COVER PLATE

Plate W-Trans. Bottom Case Power Tan

1шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Washer

4шт.

3

892-11010

LOCK WASHER,M10

Lock Washer

4шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Bolt

4шт.

5

84423549

COVER PLATE

Plate W/ Middle Rear Bottom Case Power Tan

1шт.

6

84423542

BRACKET

Bracket Sound Package

2шт.

7

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Bolt

20шт.

8

84425743

BRACKET

Bracket Sound Package

1шт.

9

84423530

BRACKET

Bracket Sound Package

1шт.

10

895-15012

WASHER,M12 x 28 x 2.5

Washer

14шт.

11

84423538

BRACKET

Bracket Sound

2шт.

12

84412038

FOAM INSULATION

Insolation Transmission

1шт.

13

84412039

FOAM INSULATION

Insolation Transmission

1шт.

14

84412041

FOAM INSULATION

Foam LH Side

1шт.

15

84423552

COVER PLATE

Plate Middle Rear Bottom

1шт.

16

84412046

FOAM INSULATION

Foam Axle Cooler

1шт.

17

84411986

BRACKET

Bracket Sound Package

4шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

Nut

4шт.

19

84411990

FOAM INSULATION

Insulation Transmision

1шт.

Выбрано товаров: 19
