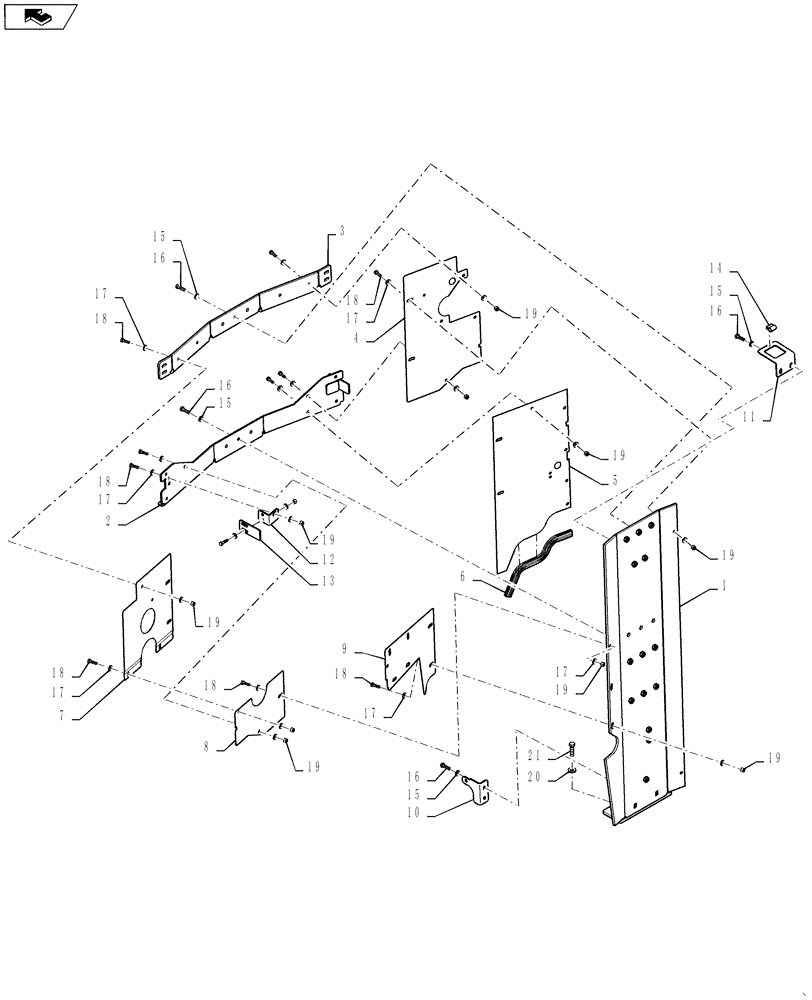

Запчасти Case 1121F (39.125.02) - ENGINE WALL INSTALL (39) - FRAMES AND BALLASTING

1

84411992

PANEL SUPPORT

Support Weld Firewall

1шт.

2

84357760

BRACKET, SUPPORTING

Support firewall Mid

1шт.

3

84357761

BRACKET, SUPPORTING

Bracket Top Hood Support

1шт.

4

84382822

PLATE

Plate Engine Wall Top Left

1шт.

5

84469562

PLATE

Plate Engine Wall Lower Left

1шт.

6

90-2894T1

SEAL

Seal Bulk 0.43

1шт.

7

84489979

PLATE

Plate Engine Wall Top Right

1шт.

8

84489980

PLATE

Plate Engine Wall Middle right

1шт.

9

84489981

PLATE

Plate Engine Wall Bottom Right

1шт.

10

84357770

BRACKET, SUPPORTING

Plate Actuator Mount

1шт.

11

84315440

MOUNTING PLATE

Plate Actuator Mount Top

1шт.

12

84351102

BRACKET

Bracket Door Latch RH

2шт.

13

84351104

PLATE

Plate Door Latch

2шт.

14

84315441

SEAL

Seal Mount 30mm Bulk # 8605845

4шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Washer

10шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Bolt

10шт.

17

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

Washer

62шт.

18

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Bolt

31шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

Lock Nut

31шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

Washer

5шт.

21

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

Bolt

5шт.
