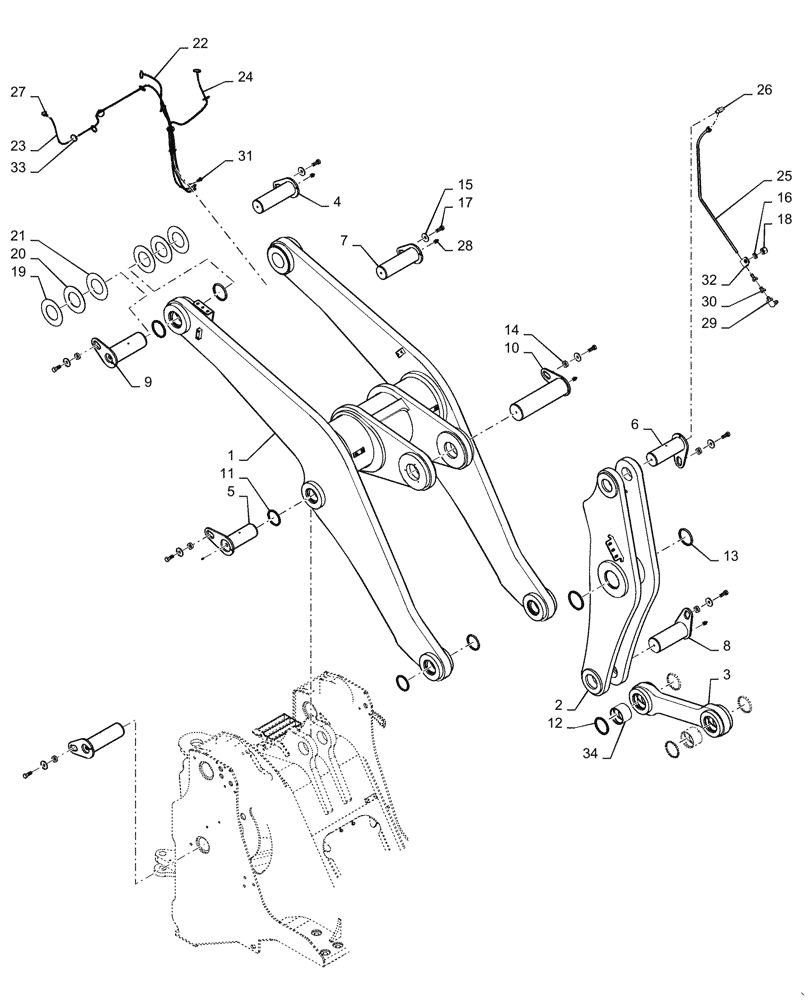

Запчасти Case 1121F (39.105.01) - LIFT ARM INSTALLATION- Z BAR AND XR/LR (39) - FRAMES AND BALLASTING

1

84415069

LIFT ARM

Z-Bar Only

1шт.

1

84419553

LIFT ARM

XR/LR Only

1шт.

2

84415048

BELLCRANK

1шт.

3

84413829

LINK

1шт.

4

84284304

PIN,101.6mm OD x 266mm L

4.0 IN, 266 mm

1шт.

5

84293834

PIN,101.6mm OD x 276mm L

4.0 IN, 276 mm

2шт.

6

84315431

PIN,101.6mm OD x 295mm L

4.0 IN, 295 mm

1шт.

7

84284302

PIN,101.6mm OD x 343mm L

4.0 IN, 343 mm

2шт.

8

84296692

PIN,114.3mm OD x 295mm L

4.5 IN, 295 mm

1шт.

9

84284299

PIN,114.3mm OD x 329mm L

4.5 IN, 329 mm

2шт.

10

84284297

PIN,127mm OD x 472mm L

5.0 IN, 472 mm

1шт.

11

S108245

WIPER SEAL

Wiper Rod 101.6

8шт.

12

84238525

SEALING RING

Wiper Rod 114.3

8шт.

13

84278876

RUBBER RING

Wiper Rod 127.0

2шт.

14

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

Linkage Pins

10шт.

15

87355604

WASHER

Hardened Flat

10шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

17

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

10шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

19

84278980

SHIM

1шт.

20

84278979

SHIM

1шт.

21

84277334

SHIM

Grease

1шт.

22

84293478

FLEXIBLE HOSE,4.83mm ID x 1682mm L

Grease

1шт.

23

84293481

FLEXIBLE HOSE,4.83mm ID x 2294mm L

Grease

1шт.

24

318012A1

FLEXIBLE HOSE

Grease

1шт.

25

84293483

RIGID TUBE

Grease

1шт.

26

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

1шт.

27

328082A1

ELBOW

3шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

6шт.

29

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

30

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

1шт.

31

F53473

LOCK NUT,1/8-27 NPSM

Hex, 1/8-27 NPSM

3шт.

32

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

33

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

10шт.

34

84261159

BUSHING,114.62mm ID x 130.28mm OD x 102mm L

2шт.
