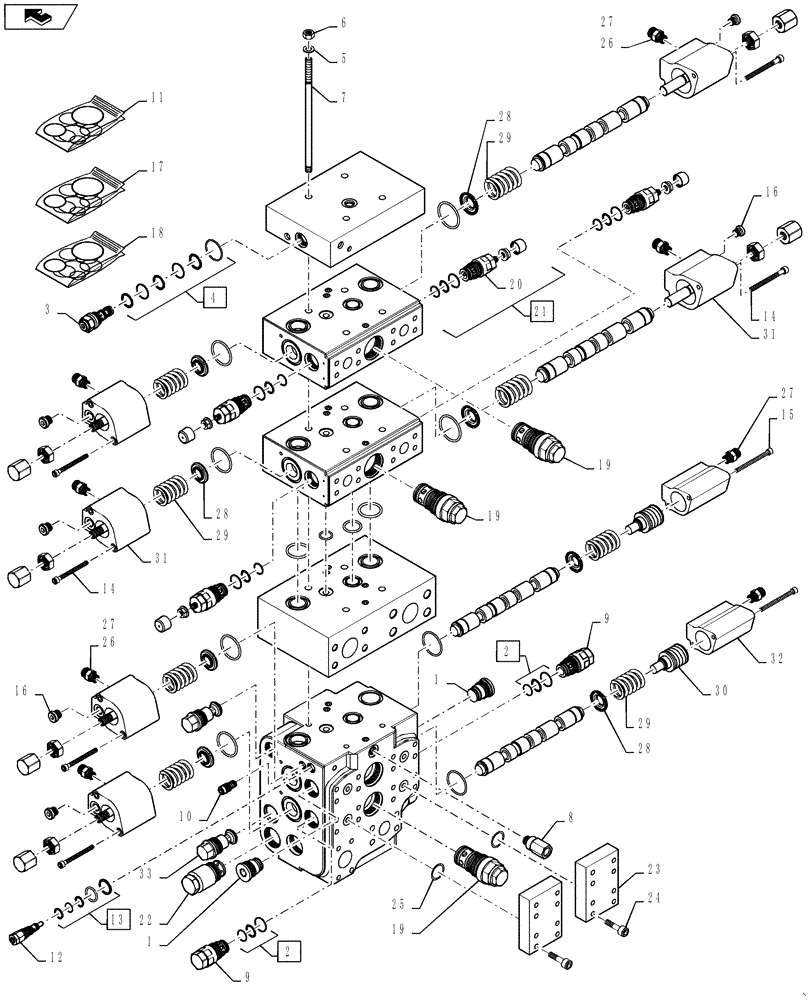

Запчасти Case 1121F (35.724.02) - VALVE, 3 FUNCTIONS ZBAR/XR/LR (35) - HYDRAULIC SYSTEMS

1

8602902

LOCK SCREW

2шт.

2

8602903

SEAL KIT

For Ref 1 or 9;Not Shown

1шт.

3

8602913

HYDRAULIC VALVE

Flow Limiting

1шт.

4

8604592

SEAL KIT

Seal; For Ref 3; Not Shown

1шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

7

84483018

STUD

4шт.

8

8602899

HYDRAULIC VALVE

Pilot Pressure Reducing

1шт.

9

87613468

HYDRAULIC VALVE

Anti-Cavitation for Valve 725

2шт.

9

48043556

VALVE

Anti-Cavitation for Valve 927

2шт.

9

87613467

SEAL KIT

Anti-Cavitation for Valve 725

2шт.

9

48043557

SEAL KIT

Anti-Cavitation for Valve 927

2шт.

10

87613469

HYDRAULIC VALVE

Flow Limiting

1шт.

11

8602916

SEAL KIT

For Ref 10; Not Shown

1шт.

12

8602925

VALVE PRESSURE RELIE

1шт.

13

87692469

SEAL KIT

For Ref 12; Not Shown

1шт.

14

87615735

SCREW

12шт.

15

8602892

HEX SOC SCREW,M6 x 105mm

4шт.

16

87311766

PLUG

6шт.

17

87620361

SEAL KIT

For M6-22 Sections; Not Shown

1шт.

18

84483016

SEAL KIT

For M6-22 Monoblock; Not Shown

1шт.

19

84483015

VALVE

Compensator

4шт.

20

84483014

VALVE

Anti-Cav/Relief

4шт.

21

84483013

SEAL KIT

For Ref 20; Not Shown

1шт.

22

84483012

VALVE

Anti-Cavitation

1шт.

23

84483010

PLATE

Spool Combining

2шт.

24

864-10040

HEX SOC SCREW,M10 x 40mm, Cl 8.8

16шт.

25

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

4шт.

26

84483024

FITTING

Orifice Check

2шт.

27

84483023

FITTING

Orifice Check

6шт.

28

8602918

RETAINER

Centering Spring

8шт.

29

87364779

COMPRESSION SPRING

8шт.

30

84483022

SPRING

Float

2шт.

31

84483021

COVER

Spool

6шт.

32

84483019

COVER

Float

2шт.

33

84483009

CHECK VALVE

2шт.
