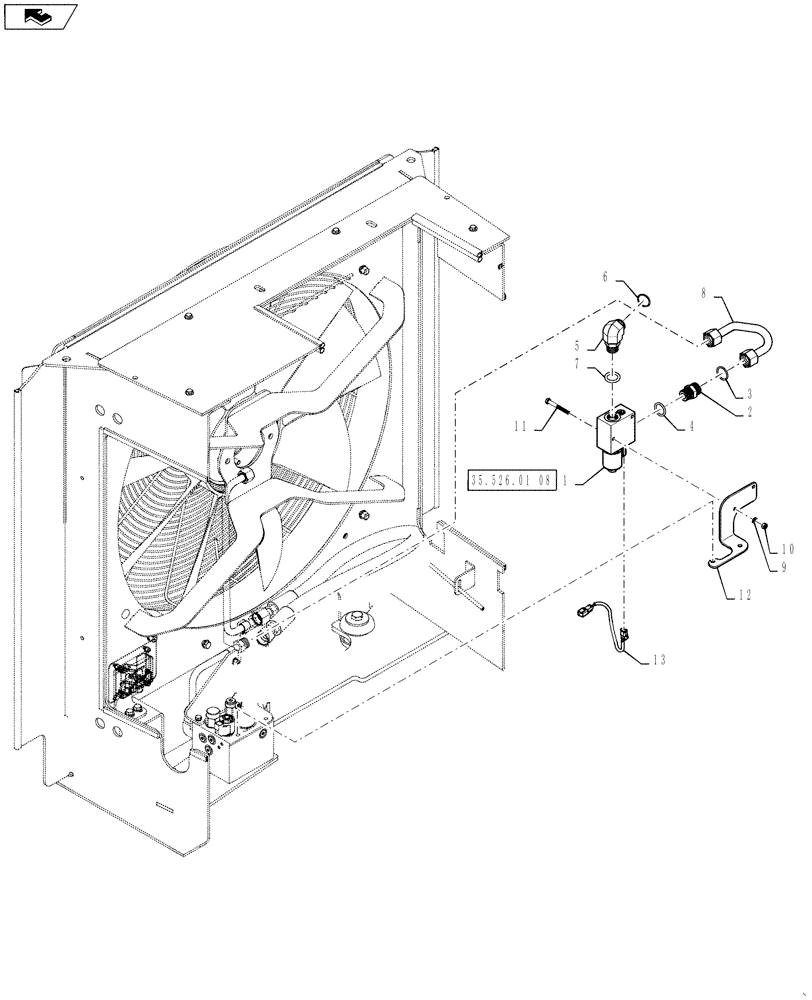

Запчасти Case 1121F (35.526.01[07]) - HEAT LOAD VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84483998

CONTROL VALVE

See Fig 35.526.01 (08)

1шт.

2

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order 3-4

1шт.

3

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order 6-7

1шт.

6

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

84528103

TUBE

Cab Heat Load

1шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

12

84528105

BRACKET, SUPPORTING

1шт.

13

84553088

JUMPER

Cab Heat

1шт.
