Запчасти Case 1121F (35.526.01[06]) - FAN RELIEF VALVE WITH REVERSER (35) - HYDRAULIC SYSTEMS

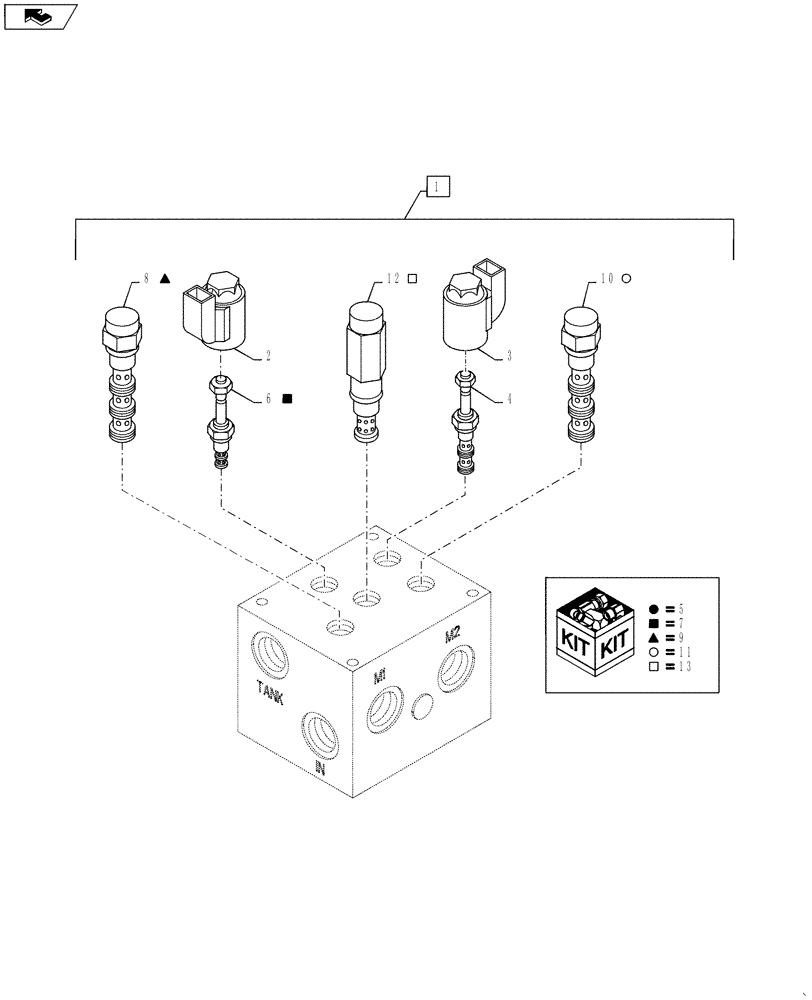

Схема запчастей Case 1121F - (35.526.01[06]) - FAN RELIEF VALVE WITH REVERSER (35) - HYDRAULIC SYSTEMS
13
7
3
1
home
5
10
8
7
9
2
11
5
7
4
13
6
11
12
11
9
13
9

Артикул

Название

Примечание

Количество

1

8500565

HYDRAULIC VALVE

Fan Speed and Reverser Inc. 2-13

1шт.

2

87617169

COIL

Fan Valve

1шт.

3

87617170

COIL

Fan Valve

1шт.

4

8605066

VALVE PRESSURE RELIE

1шт.

5

87617168

SEAL KIT

For Item 5

1шт.

6

8605062

SOLENOID VALVE

EF Electric Proportional

1шт.

7

1542830C2

SEAL KIT

For Item 6

1шт.

8

8605059

PILOT VALVE

Directional

1шт.

9

388744A1

SEAL KIT

For Item 8

1шт.

10

8605056

PILOT VALVE

Directiional

1шт.

11

388744A1

SEAL KIT

For Item 10

1шт.

12

8605053

VALVE PRESSURE RELIE

Bi-Directional

1шт.

13

1542833C1

SEAL KIT

For Item 12

1шт.

Выбрано товаров: 13
