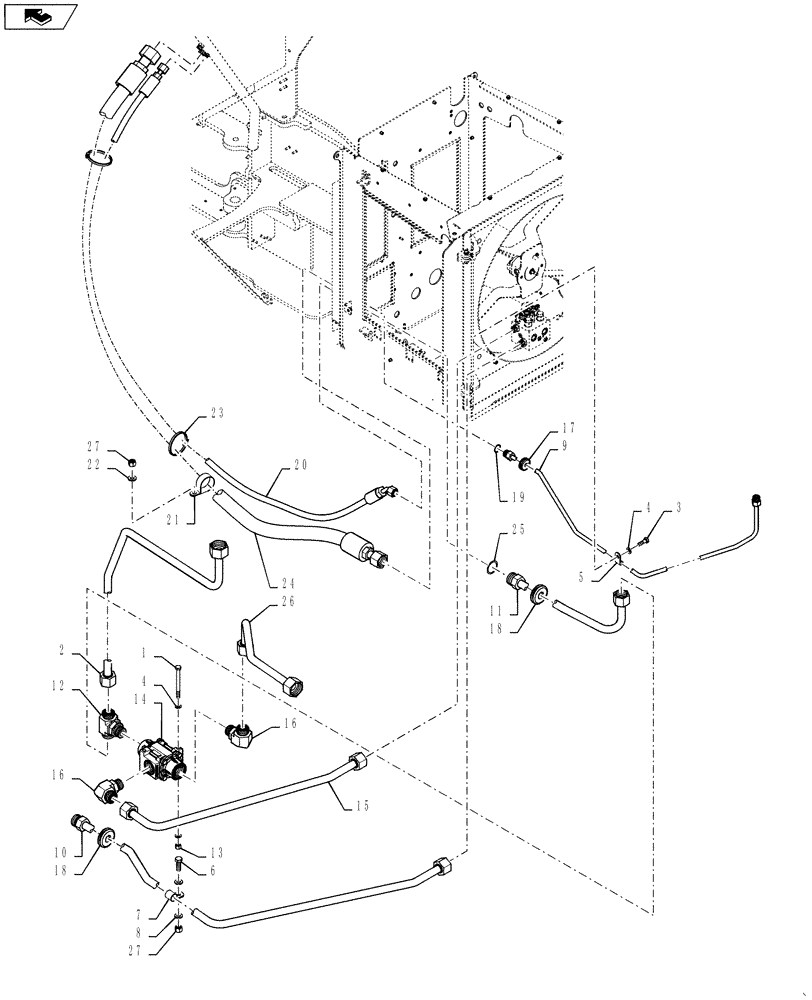

Запчасти Case 1121F (35.526.01[04]) - COOLING FAN RELIEF VALVE INSTALLATION-WITH REVERSING (35) - HYDRAULIC SYSTEMS

1

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

2

84498371

TUBE

Cooler Out

1шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

5

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

7

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

9

84373128

HYD TUBE

Drain

1шт.

10

84373103

HYD TUBE

Fan Valve In

1шт.

11

84373160

HYD TUBE

Cooling Box Tank

1шт.

12

700-424

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

14

87326981

BY-PASS VALVE

Thermal

1шт.

15

84373149

HYD TUBE

Fan Valve Tank

1шт.

16

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

17

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

1шт.

18

87330628

GROMMET

2шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

84373121

HOSE ASSY.

Fan, Serial Range: Drain-Tank

1шт.

21

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

2шт.

22

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

24

84373119

HOSE ASSY.,25.4mm ID x 2360mm L, SAE 100R1

Fan Return

1шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

26

84373157

HYD TUBE

Cooler In

1шт.
