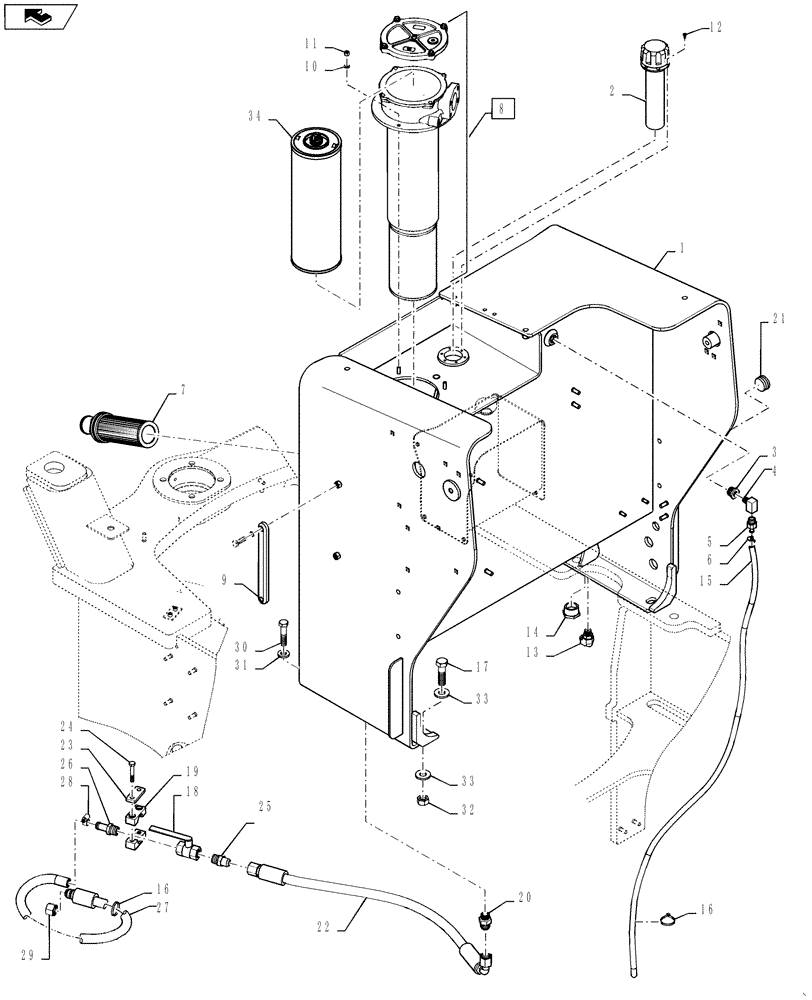

Запчасти Case 1121F (35.300.01) - HYDRAULIC TANK INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84374381

TANK

Hydraulic

1шт.

2

367149A1

STRAINER ASSY.

1шт.

3

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

4

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

1шт.

5

8606006

VALVE, CHECK

1шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

7

84201770

FILTER STRAINER

2шт.

8

84215412

FILTER

Return Incl 34

1шт.

9

84201772

GAUGE

None, Serial Range: -NDF221198

1шт.

9

86988366

SIGHTGLASS

, Start Serial: NDF221199

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

12

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

6шт.

13

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

14

221-609

REDUCER,Hex, 1 1/4" x 1" NPT

1шт.

15

31-2281

HOSE,9.5 mm ID x 1828.80 mm

Breather

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

17

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

2шт.

18

L124327

DRAIN VALVE

1шт.

19

372453A1

BLOCK

Tube Mounting

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

21

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

22

84483481

HOSE,19.05mm ID x 922.6mm L

1шт.

23

367658A1

PLATE

Clamp Cover

1шт.

24

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

25

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

26

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

1шт.

27

84483482

HOSE,19.05mm ID x 922.6mm L

1шт.

28

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

29

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

30

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

31

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

2шт.

32

9847024

NUT,M20, Cl 10

2шт.

33

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

34

47399179

ELEMENT

Filter

1шт.
