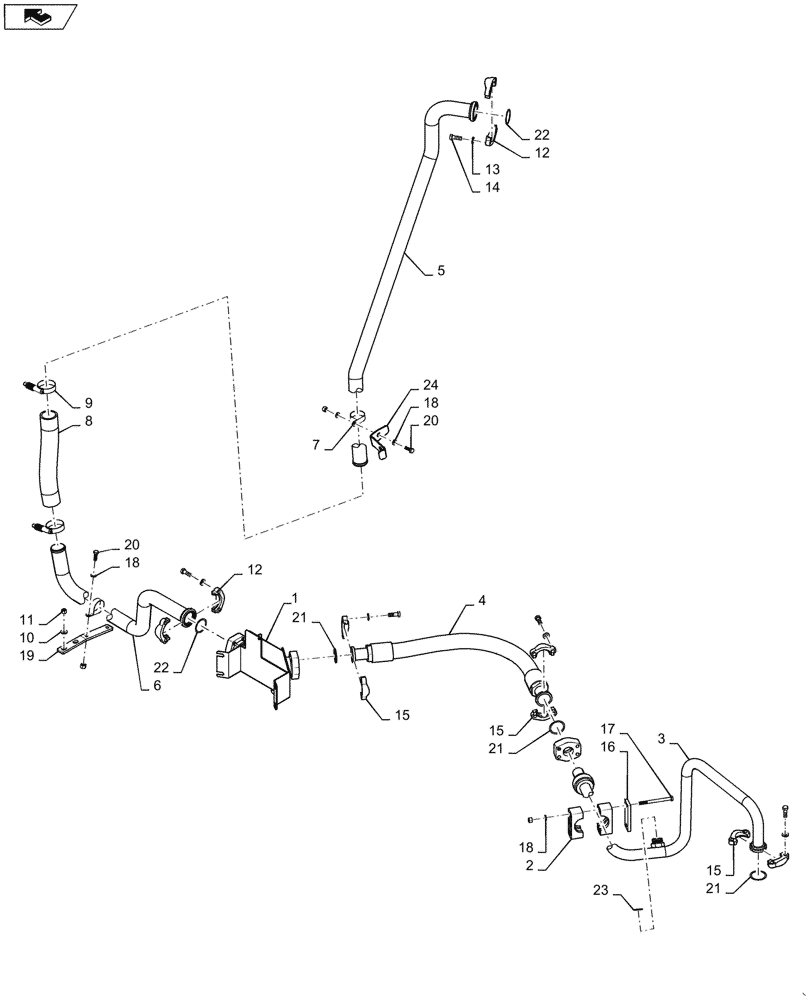

Запчасти Case 1121F (35.260.01) - TANK RETURN ROUTING (35) - HYDRAULIC SYSTEMS

1

84419592

HYDRAULIC MANIFOLD

Return

1шт.

2

84258057

BLOCK

Tube Mount

1шт.

3

84425587

HYD TUBE

Valve Return

1шт.

4

84364941

HOSE ASSY.

To Loader Valve

1шт.

5

84361314

HYD TUBE

Filter

1шт.

6

84305561

TUBE

Manifold To Tank

1шт.

7

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

8

84305563

HOSE,50.8mm ID x 384mm L, SAE 100R4

Manifold To Tank

1шт.

9

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque Clamp

2шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

9шт.

12

A14141

FLANGE

Split Half Clamp

4шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

20шт.

14

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

20шт.

15

A14157

FLANGE

Split Half Clamp

6шт.

16

87398739

PLATE

Clamp Cover

1шт.

17

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

19

84390767

BRACKET, SUPPORTING

Tube

1шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

21

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

3шт.

22

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2шт.

23

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

24

84528082

BRACKET

Return Tube Support

1шт.
