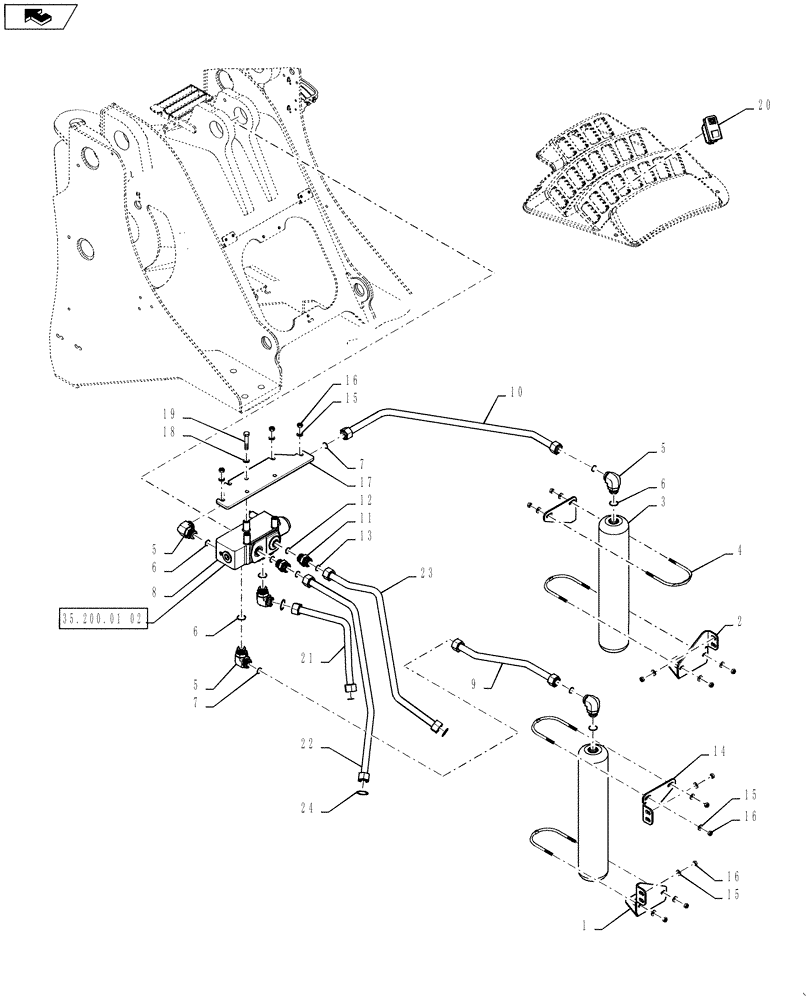

Запчасти Case 1121F (35.200.01) - RIDE CONTROL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84300220

BRACKET, SUPPORTING

Right Hand

1шт.

2

84300221

BRACKET, SUPPORTING

Left Hand

1шт.

3

87393434

ACCUMULATOR,3.8L

Ride Control

2шт.

4

87492028

U-BOLT

4шт.

5

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Also order 6 and 7

5шт.

6

14438285

O-RING,29.5mm ID x 3.0mm

5шт.

7

70931640

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

5шт.

8

84494279

CONTROL VALVE

See fig 35.200.01 (02)

1шт.

9

84300222

HYD TUBE

Right Hand

1шт.

10

84300224

HYD TUBE

Ride Control

1шт.

11

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

2шт.

12

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

13

70931640

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

14

87529147

BRACKET

Accumulator

2шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

20шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

20шт.

17

84300226

SUPPORT

Ride Control

1шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

19

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

3шт.

20

87350055

SWITCH

Ride Control

1шт.

21

84425647

TUBE

Ride Control

1шт.

22

84425190

TUBE

Ride Control

1шт.

23

84425183

TUBE

Ride Control

1шт.

24

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.
