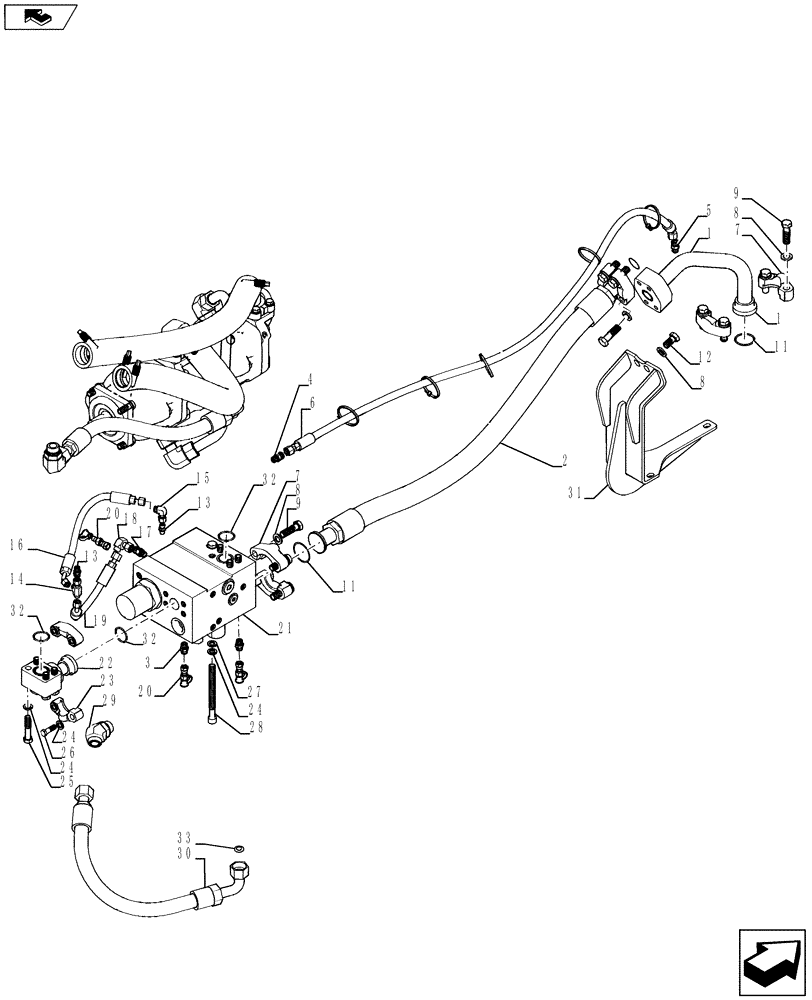

Запчасти Case 1121F (35.182.02) - PRIORITY HYDRAULIC ROUTING PUMP TO VALVE (35) - HYDRAULIC SYSTEMS

1

84322175

TUBE

1шт.

2

84322170

HOSE,38.1mm ID x 1230mm L, SAE 100R13

1шт.

3

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

3шт.

4

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

6

84305605

HOSE

1шт.

7

86980734

CLAMP

6шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

9

627-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9, Full Thd

12шт.

10

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

11

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

3шт.

12

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.

13

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

2шт.

14

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.

15

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.

16

84328973

HOSE,9.53mm ID x 397mm L, SAE 100R16

1шт.

17

84327039

CHECK VALVE

1шт.

18

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

19

84328981

HOSE,9.53mm ID x 334mm L, SAE 100R16

1шт.

20

190117A1

COUPLING

3шт.

21

84305998

VALVE

See Fig 35.182.03

1шт.

22

84243173

HYD TUBE

1шт.

23

87680118

CLAMP

2шт.

24

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

12шт.

25

827-14070

BOLT,Hex, M14 x 2 x 70mm, Cl 10.9

4шт.

26

1265073

12 PT SCREW,Flg, M14 x 2 x 45mm, Cl 10.9

4шт.

27

895-11014

WASHER,M14 x 28 x 2.5

4шт.

28

87592606

HEX SOC SCREW,M14 x 2 x 170mm, Cl 10.9

4шт.

29

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

30

84367004

HOSE ASSY.

1шт.

31

84322201

BRACKET

1шт.

32

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

3шт.

33

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.
