Запчасти Case 1121F (35.160.01[03]) - TILT CYLINDER INSTALLATION Z-BAR AND XR (35) - HYDRAULIC SYSTEMS

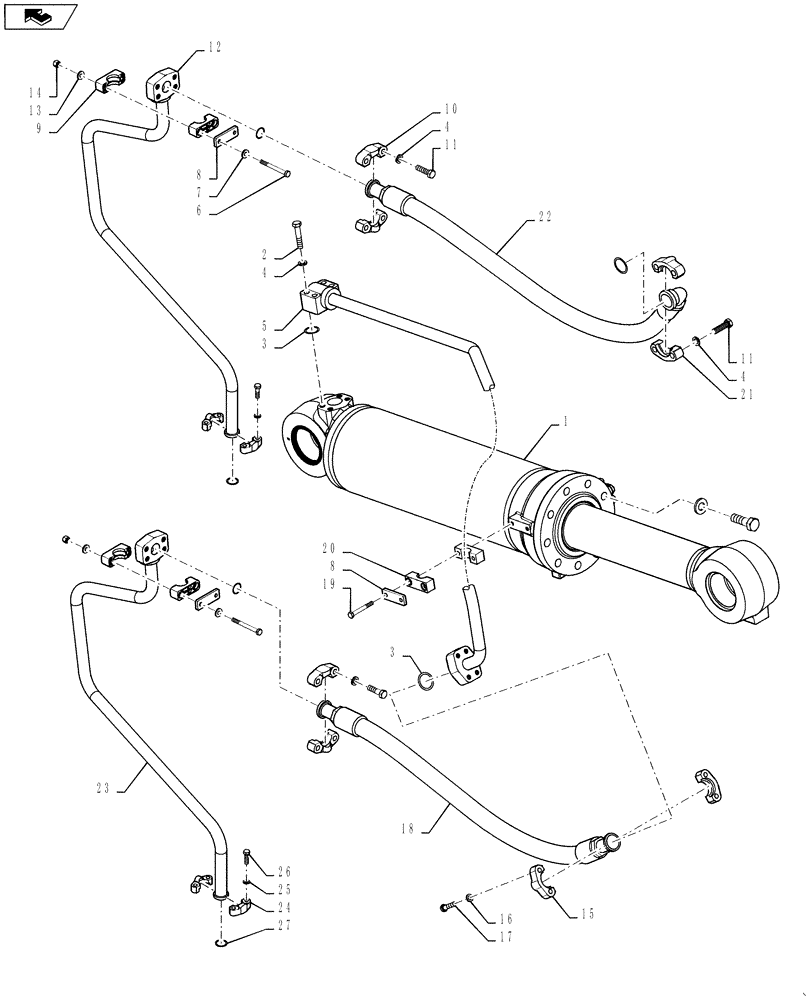

Схема запчастей Case 1121F - (35.160.01[03]) - TILT CYLINDER INSTALLATION Z-BAR AND XR (35) - HYDRAULIC SYSTEMS
27
26
home
11
1
21
16
12
23
15
14
19
8
22
4
5
20
10
7
18
17
11
3
8
6
9
25
4
4
13
2
3
24

Артикул

Название

Примечание

Количество

1

84344681

HYDRAULIC CYLINDER,Double Acting, 127mm Rod, 694.7mm Stroke

XR, Closed Dim. 1734.1mm / 68.27"

1шт.

84344681R

REMAN-HYD CYLINDER

1121F TIER 4 (4/10-)

1шт.

84344681C

CORE-HYD CYLINDER

Return Number

1шт.

1

84324576

HYDRAULIC CYLINDER,Double Acting, 127mm Rod, 694.7mm Stroke

ZB, Closed Dim. 1265.7mm / 49.83"

1шт.

1

84324576R

REMAN-HYD CYLINDER

1121F WHEEL LOADER TIER 4 (NA), ZB (4/10-)

1шт.

1

84324576C

CORE-HYD CYLINDER

Return Number

1шт.

2

827-14070

BOLT,Hex, M14 x 2 x 70mm, Cl 10.9

4шт.

3

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

5шт.

4

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

16шт.

5

84340168

HYD TUBE

1шт.

6

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

8

8500858

PLATE

3шт.

9

84240210

CLAMP,16mm ID

2шт.

10

87680118

CLAMP

4шт.

11

827-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 10.9

12шт.

12

84426443

TUBE

1шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

15

86980733

CLAMP

2шт.

16

892-11012

LOCK WASHER,M12

4шт.

17

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

18

84340169

HYDRAULIC HOSE

1шт.

19

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

20

87452747

CLAMP,33.4mm ID

1шт.

21

87680118

CLAMP

2шт.

22

84340170

HYDRAULIC HOSE

1шт.

23

84426440

TUBE

1шт.

24

86980731

CLAMP

4шт.

25

892-11010

LOCK WASHER,M10

12шт.

26

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

27

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

Выбрано товаров: 32
