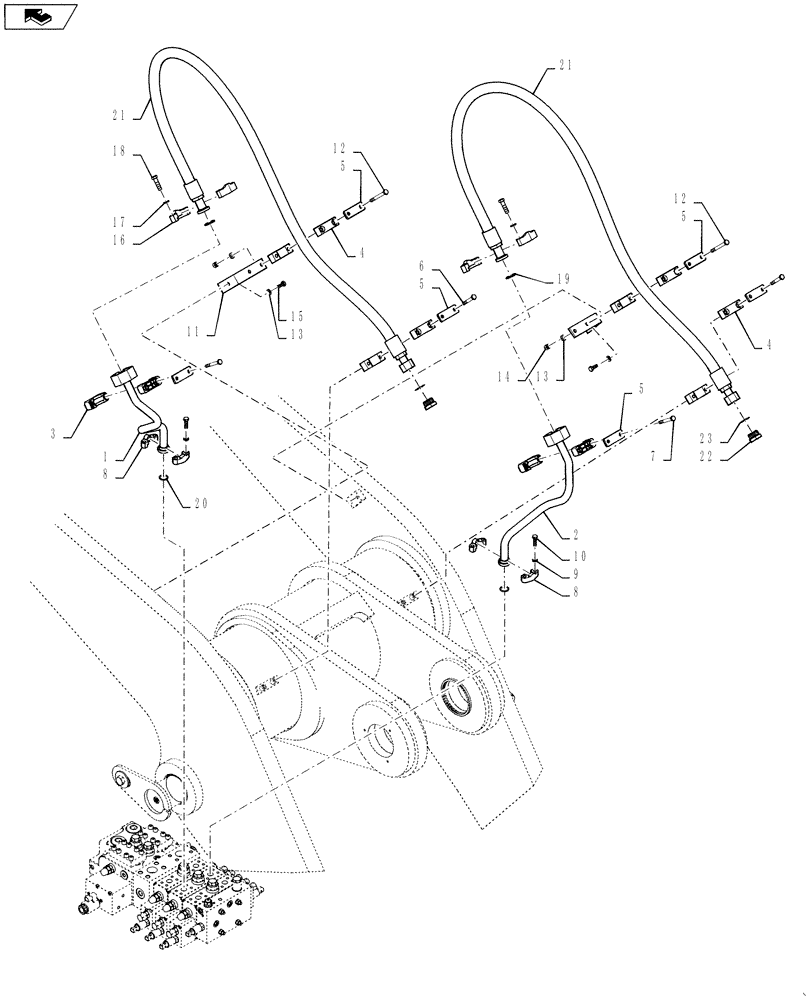

Запчасти Case 1121F (35.140.04) - LINE INSTALLATION, LOADER CONTROLS, ACCESSORY, XR (35) - HYDRAULIC SYSTEMS

1

84491447

HYD TUBE

3rd Spool RH

1шт.

2

84491453

TUBE

3rd Spool LH

1шт.

3

84240207

ASSEMBLY

Tube Mount 25 RI

2шт.

4

87444561

BLOCK

Tube Mounting

4шт.

5

8500858

PLATE

Clamp Cover

6шт.

6

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

7

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

8

86980731

CLAMP

4шт.

9

892-11010

LOCK WASHER,M10

8шт.

10

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

11

84308979

BRACKET

Hose Clamp

2шт.

12

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

15

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

16

86980732

CLAMP

4шт.

17

892-11012

LOCK WASHER,M12

8шт.

18

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

19

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

20

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

21

84494127

HYDRAULIC HOSE

Auxillary

2шт.

22

701-915

PLUG,Hex, 1-7/16" - 12 ORFS

2шт.

23

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.
