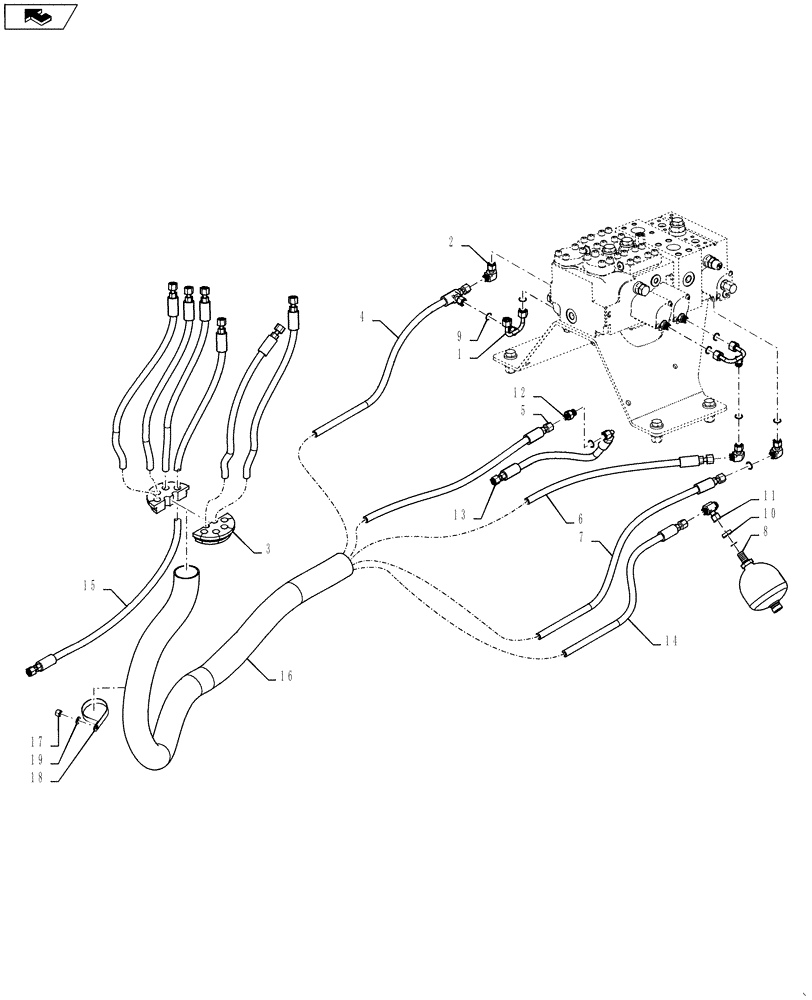

Запчасти Case 1121F (35.140.01) - LINE INSTALLATION, LOADER CONTROLS, 2 FUNCTION VALVE (35) - HYDRAULIC SYSTEMS

1

84377777

HYD TUBE

Valve, Includes (2) Ref. 9

2шт.

2

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Includes (4 - 1 per elbow) Ref. 9

4шт.

3

84385656

GROMMET

Hose Mounting

2шт.

4

84377743

HOSE ASSY.

Pilot Dump

1шт.

5

84377742

HOSE ASSY.,9.53mm ID x 2915mm L, SAE 100R1

Pilot Lower

1шт.

6

84377741

HOSE ASSY.

Pilot Raise

1шт.

7

84377740

HOSE ASSY.,9.53mm ID x 3140mm L, SAE 100R1

Pilot Rollback

1шт.

8

8501047

ACCUMULATOR

Pilot Supply

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

9шт.

10

701-909

NUT,11/16" - 16

Includes (1) Ref. 9

1шт.

11

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Includes (2) Ref. 9

1шт.

12

391859A1

VALVE, CHECK

1шт.

13

84377738

HOSE ASSY.

Pilot Accumulator

1шт.

14

84377735

HOSE ASSY.

Pilot Pressure

1шт.

15

84377737

HOSE ASSY.,9.53mm ID x 1490mm L, SAE 100R1

Pilot Tank

1шт.

16

87348231

SLEEVE

1шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

18

87302918

CLAMP,69.8mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
