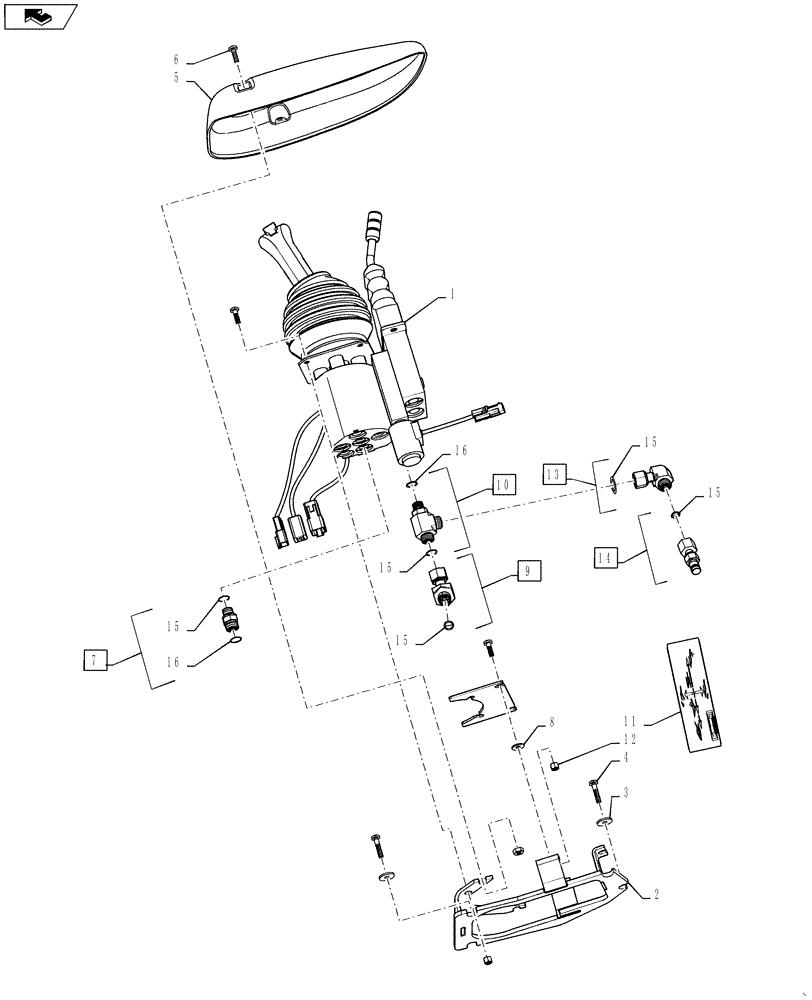

Запчасти Case 1121F (35.128.04) - VALVE ASSEMBLY - JOYSTICK CONTROL INSTALLATION - 3 FUNCTION JOYSTICK, 1 LEVER (35) - HYDRAULIC SYSTEMS

1

87537725

CONTROL

Joystick and 1 Lever

1шт.

2

87516506

ADAPTER

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

4

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

4шт.

5

87638911

BEZEL

1шт.

6

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

7шт.

7

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Includes (1) Item 15 and (1) Item 16

7шт.

8

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

9

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Includes (1) Item 15

1шт.

10

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Includes (1) Item 15 and (1) Item 16

1шт.

11

87536095

DECAL

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

2шт.

13

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Includes (1) Item 15

1шт.

14

190119A1

COUPLING

Includes (1) Item 15

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.
