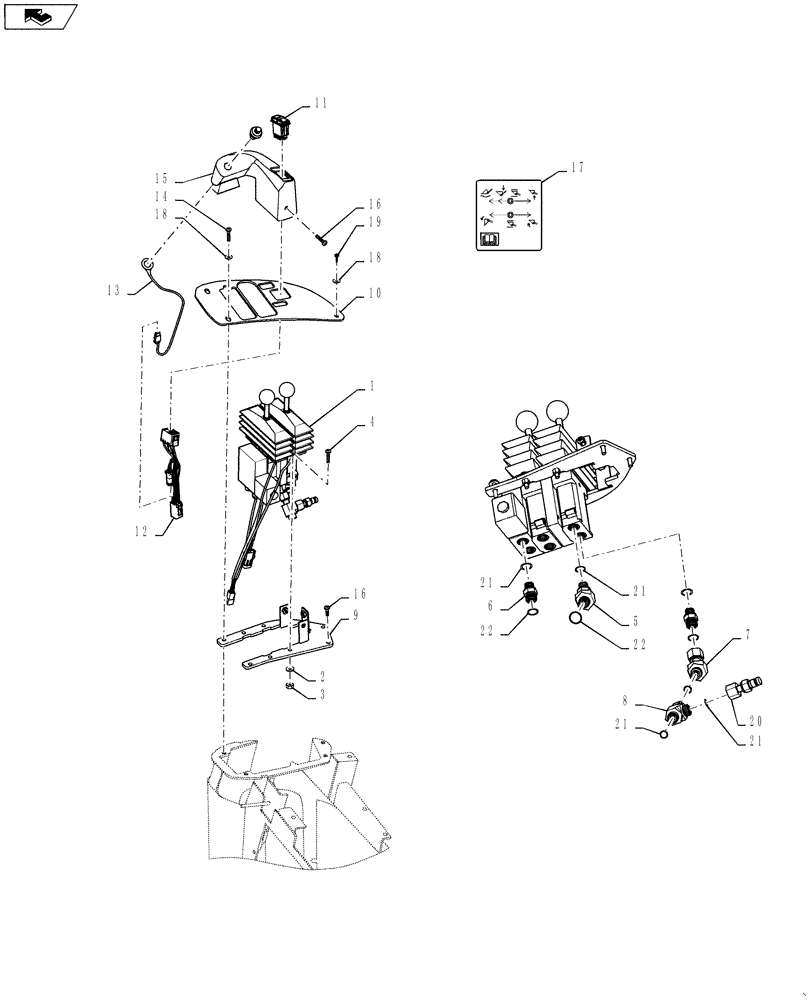

Запчасти Case 1121F (35.128.02) - VALVE ASSEMBLY - JOYSTICK CONTROL INSTALLATION - 2 FUNCTION JOYSTICK, 2 LEVER (35) - HYDRAULIC SYSTEMS

1

87539289

CONTROL

2 Lever

1шт.

2

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

3

832-10406

NUT,M6 x 1, Cl 8

4шт.

4

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

5

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Includes (1) Item 21 and (1) Item 22

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Includes (1) Item 21 and (1) Item 22

5шт.

7

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Includes (1) Item 21

1шт.

8

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Includes (1) Item 21

1шт.

9

87534053

BRACKET

Single Axis Controller

1шт.

10

87515557

BRACKET

2 Lever

1шт.

11

400833A2

SWITCH

F-N-R

1шт.

12

87324389

WIRE HARNESS

FNR Switch

1шт.

13

402390A1

SWITCH

Downshift

1шт.

14

84263396

SCREW,Phillips Drive, Pan HD, M6 x 30mm, Cl 4.8

2шт.

15

87523729

COVER

1шт.

16

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

5шт.

17

87536092

DECAL

2 Lever Control

1шт.

18

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

3шт.

19

1270762C1

SELF-TAP SCREW

1шт.

20

190119A1

COUPLING

Diagnostic; Includes (1) Item 21

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

22

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.
