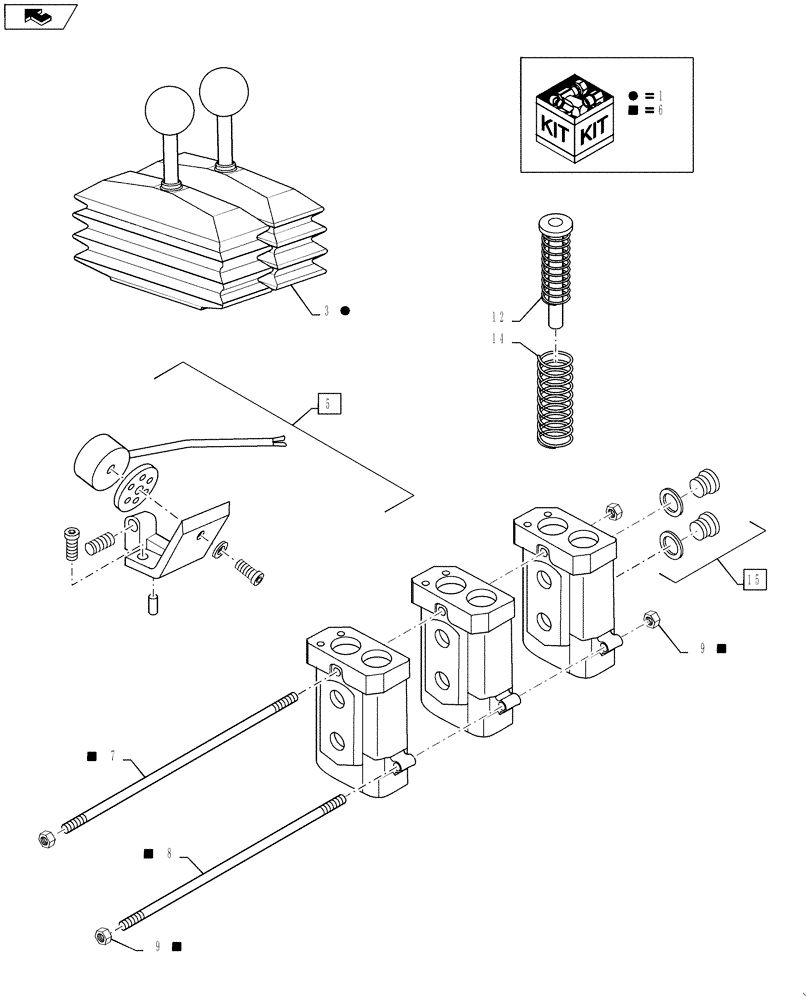

Запчасти Case 1121F (35.128.02[01]) - VALVE ASSEMBLY - JOYSTICK CONTROL, 2 LEVER (35) - HYDRAULIC SYSTEMS

1

8604551

REPAIR KIT

Handle; Includes Refs. 2 and 3

2шт.

2

NSS

NOT SOLD SEPARAT

Handle; Not Shown

1шт.

3

NSS

NOT SOLD SEPARAT

Boot

1шт.

4

8604552

SOLENOID

Regulator Unit; Not Shown

1шт.

5

8604553

REPAIR KIT

Magnet

3шт.

6

410933A1

KIT

Rod; Includes Refs. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

Rod

1шт.

8

NSS

NOT SOLD SEPARAT

Rod

2шт.

9

NSS

NOT SOLD SEPARAT

Nut

6шт.

10

8604557

SEAL

Intersection; Not Shown

6шт.

11

8604555

KIT

Kit, Pin; Not Shown

4шт.

12

87551310

SPRING KIT

3шт.

13

8604598

CONTROL VALVE

Section; Not Shown

1шт.

14

449527A1

SPRING

Return

4шт.

15

8604608

MAGNETIC PLUG

Metric

3шт.

16

8604599

SPACER

Manifold

1шт.

17

87551311

SPRING KIT

Not Shown

1шт.

18

449528A1

LEVER

Not Shown

1шт.

19

449529A1

LEVER

Not Shown

1шт.

20

449530A1

MOUNTING PLATE

Not Shown

2шт.

21

449533A1

SEAL KIT

Not Shown

1шт.
