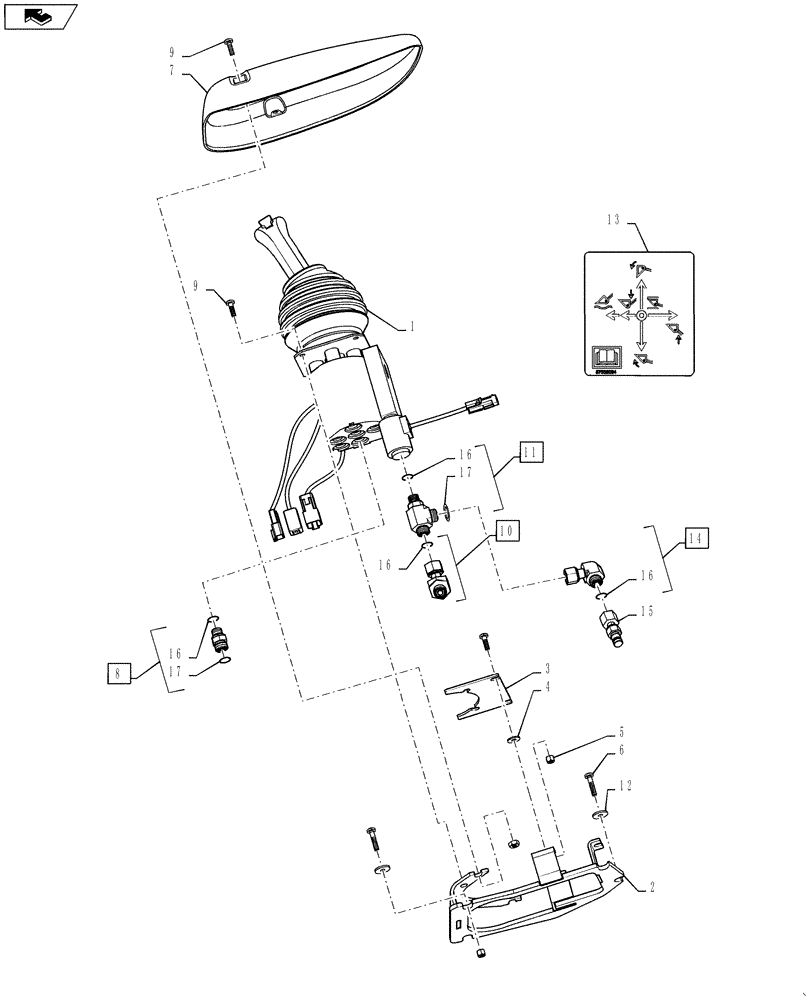

Запчасти Case 1121F (35.128.01) - VALVE ASSEMBLY - JOYSTICK CONTROL INSTALLATION - 2 FUNCTION JOYSTICK (35) - HYDRAULIC SYSTEMS

1

87537723

CONTROL

1шт.

2

87516506

ADAPTER

Joystick Controller

1шт.

3

87349019

ADAPTER

No Accessory Levers

1шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

4шт.

7

87638910

BEZEL

1шт.

8

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Includes (1) item 16 and (1) Item 17

5шт.

9

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

9шт.

10

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Includes (1) item 16

1шт.

11

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Includes (1) item 16 and (1) Item 17

1шт.

12

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

13

87536094

DECAL

1шт.

14

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Includes (1) item 16

1шт.

15

190119A1

COUPLING

1шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

17

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.
