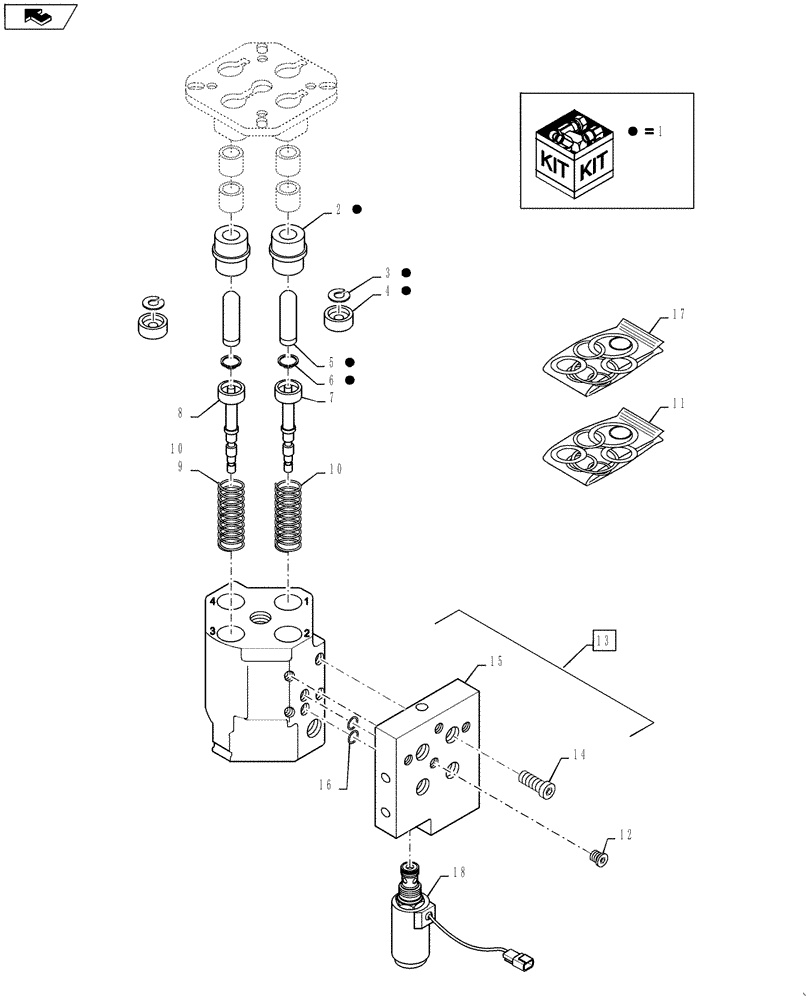

Запчасти Case 1121F (35.128.01[02]) - VALVE ASSEMBLY - JOYSTICK CONTROL (35) - HYDRAULIC SYSTEMS

1

8604521

KIT

Plunger, Includes Refs. 2 - 6

4шт.

2

NSS

NOT SOLD SEPARAT

Guide

2шт.

3

NSS

NOT SOLD SEPARAT

Washer

2шт.

4

NSS

NOT SOLD SEPARAT

Retainer

2шт.

5

NSS

NOT SOLD SEPARAT

Plunger

2шт.

6

NSS

NOT SOLD SEPARAT

Ring, Snap

2шт.

7

87546234

REGULATOR

Use in Port 1

1шт.

8

87546235

REGULATOR

Use in Ports 2, 3, 4

3шт.

9

87563048

SPRING

Set of Two; Use in Ports 2, 4

1шт.

10

8604525

SPRING

Set of Two; Use in Ports 1, 3

1шт.

11

87432563

SEAL KIT

Springs

1шт.

12

8604550

REPAIR KIT

Plug; Set of Two

1шт.

13

8604540

REPAIR KIT

Flange; Includes 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Screw

4шт.

15

NSS

NOT SOLD SEPARAT

Flange

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

17

8604541

SEAL KIT,11mm ID x 1.5mm Width

1шт.

18

8604542

SOLENOID VALVE,Joystick Control, 24v

24V

1шт.
