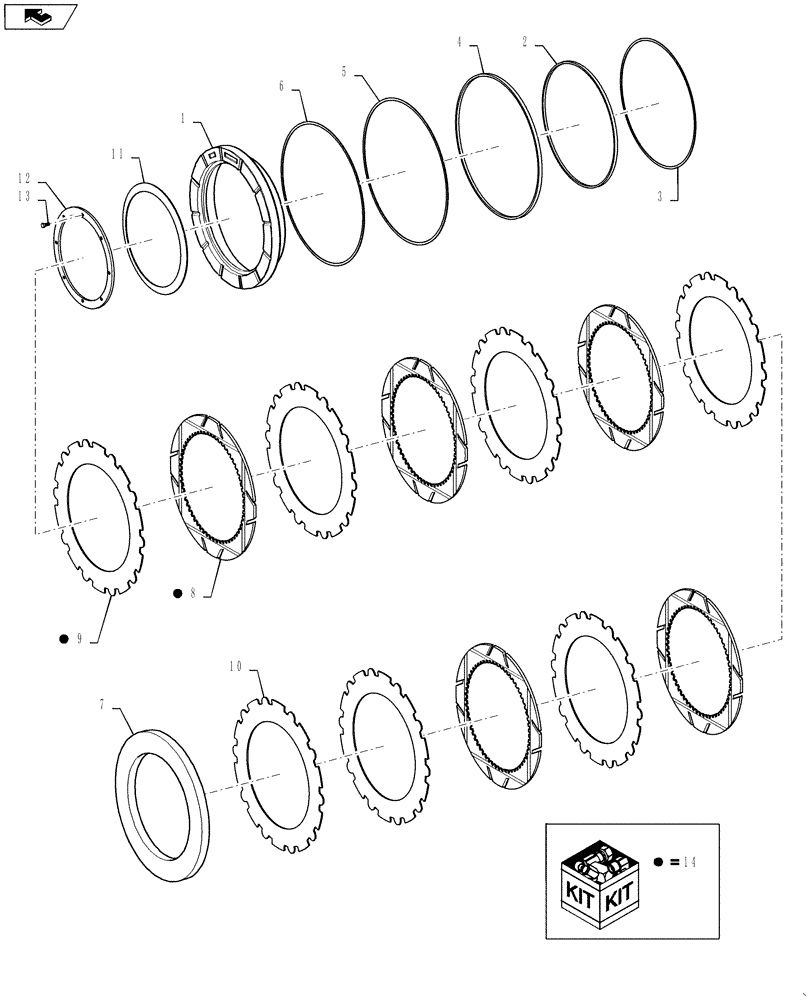

Запчасти Case 1121F (33.204.01) - BRAKES, HUB DISC, FRONT AND REAR, OPEN AND LOCK AXLE (33) - BRAKES & CONTROLS

1

84395873

PISTON

1шт.

2

84395875

RING

Slotted

1шт.

3

84395877

BACK-UP RING

1шт.

4

84395887

WASHER, SEALING

SEAL WASHER Slotted

1шт.

5

84395898

BACK-UP RING

1шт.

6

84395900

GUIDE RING

1шт.

7

84395902

SHIM

End

1шт.

8

Available Only in Kit, See 14

5шт.

9

Available Only in Kit, See 14

6шт.

10

84395907

CLUTCH DISC

CLUTCH DISK Outer, 0.7mm thick

1шт.

10

84395909

CLUTCH DISC

CLUTCH DISK Outer, 1.1mm thick

1шт.

10

84395911

CLUTCH DISC

CLUTCH DISK Outer, 1.4mm thick

1шт.

10

84395912

CLUTCH DISC

CLUTCH DISK Outer, 1.7mm thick

1шт.

10

84395913

CLUTCH DISC

CLUTCH DISK Outer, 2.0mm thick

1шт.

10

84395915

CLUTCH DISC

CLUTCH DISK Outer, 2.3mm thick

1шт.

11

84395917

SPRING CUP

1шт.

12

84395922

WASHER

1шт.

13

84395924

SCREW

8шт.

14

84574221

SERVICE KIT

Brake Service Kit, One Kit Per Axle

1шт.
