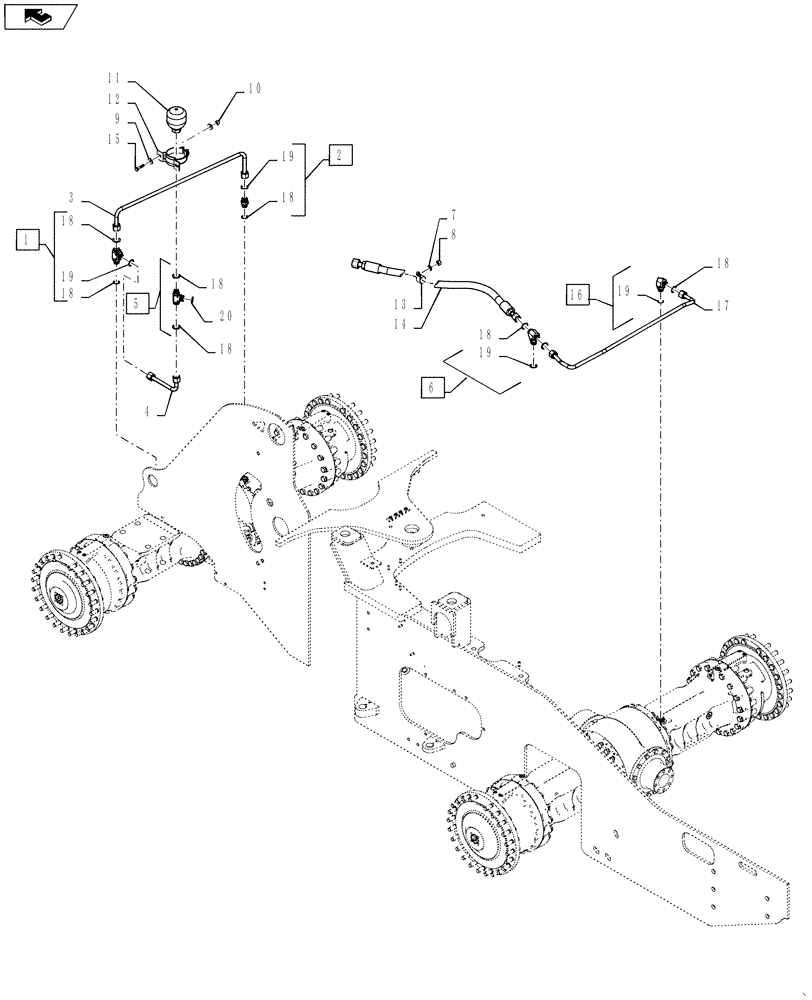

Запчасти Case 1121F (33.202.05[02]) - BRAKE ACCUMULATOR HD (33) - BRAKES & CONTROLS

1

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes (2) Ref. 18 and (1) Ref. 19

1шт.

2

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes (1) Ref. 18 and (1) Ref. 19

1шт.

3

84306483

HYD TUBE

Front Axle Brake - HD

1шт.

4

84306523

TUBE

Brake Supply Front

1шт.

5

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

Includes (2) Ref. 18 and (1) Ref. 20

1шт.

6

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes (2) Ref. 18 and (1) Ref. 19

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

9

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

84393492

ACCUMULATOR

Brake Damping

1шт.

12

84272713

CLAMP,73mm - 79mm

Acculmulator

1шт.

13

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

14

84327092

HOSE ASSY.

Rear Brake Supply

1шт.

15

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

16

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes (1) Ref. 18 and (1) Ref. 19

1шт.

17

84327083

HYD TUBE

Rear Axle Brake

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

19

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
