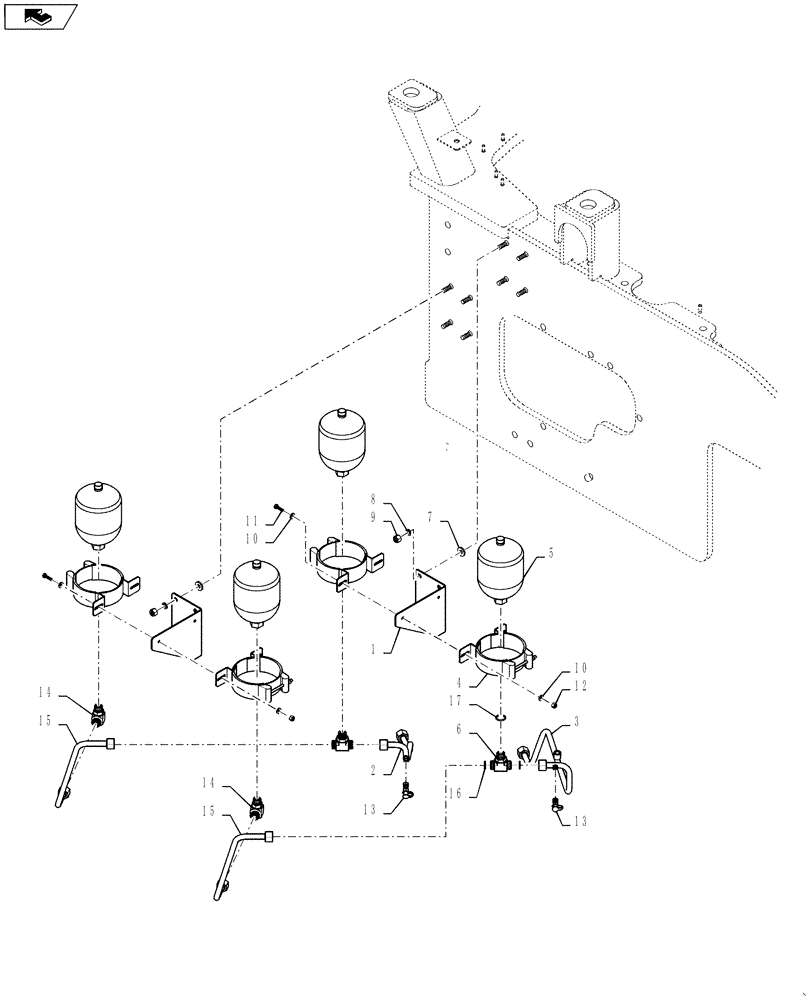

Запчасти Case 1121F (33.202.05[01]) - BRAKE ACCUMULATOR HD (33) - BRAKES & CONTROLS

1

84305573

MOUNTING PLATE

ACC, Serial Range: Mount-Chassis

2шт.

2

84379350

HYD TUBE

Accumulator Front

1шт.

3

84379352

HYD TUBE

Accumulator Rear

1шт.

4

8501315

CLAMP,167mm - 175mm

Accumulator

4шт.

5

84353396

ACCUMULATOR

Service Brake

4шт.

6

700-424

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Includes (2) Ref. 16 and (1) Ref. 17

2шт.

7

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

11

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

190117A1

COUPLING

Diagnostic

2шт.

14

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Includes (1) Ref. 16 and (1) Ref. 17

2шт.

15

84396011

HYD TUBE

Accumulator Front

2шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

17

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.
