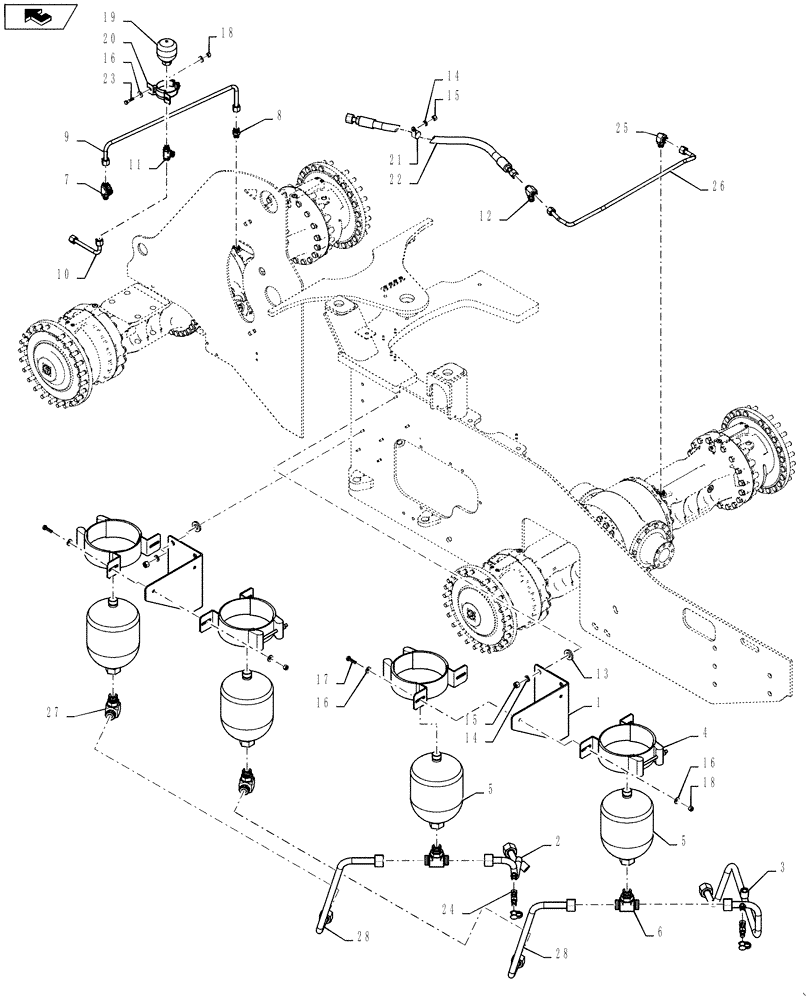

Запчасти Case 1121F (33.202.04) - BRAKE ACCUMULATOR STANDARD (33) - BRAKES & CONTROLS

1

84305573

MOUNTING PLATE

ACC, Serial Range: Mount-Chassis

2шт.

2

84379350

HYD TUBE

Accumulator Front

1шт.

3

84379352

HYD TUBE

Accumulator Rear

1шт.

4

8501315

CLAMP,167mm - 175mm

Accumulator

4шт.

5

84353396

ACCUMULATOR

Service Brake

4шт.

6

700-424

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

7

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

8

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

9

84306483

HYD TUBE

Front Axle Brake - HD

1шт.

10

84306523

TUBE

Brake Supply Front

1шт.

11

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

12

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

13

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

9шт.

16

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

12шт.

17

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

19

84393492

ACCUMULATOR

Brake Damping

1шт.

20

84272713

CLAMP,73mm - 79mm

Accumulator

1шт.

21

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

22

84327092

HOSE ASSY.

Rear Brake Supply

1шт.

23

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

24

190117A1

COUPLING

Diagnostic

2шт.

25

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

26

84327083

HYD TUBE

Rear Axle Brake

1шт.

27

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

28

84396011

HYD TUBE

Accumulator Front

2шт.
