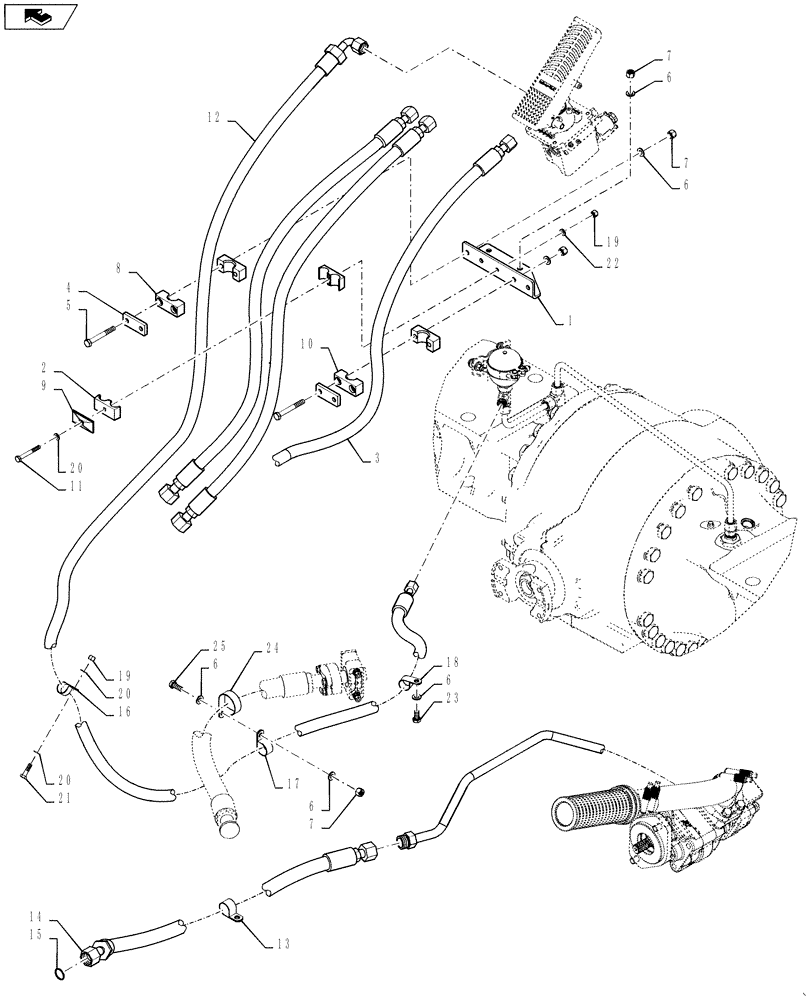

Запчасти Case 1121F (33.202.02[04]) - HYDRAULICS - MAIN BRAKE - VALVE (33) - BRAKES & CONTROLS

1

84468970

BRACKET

Acc Hose Support

1шт.

2

50-2534T1

CLAMP

Tube

2шт.

3

84380234

HOSE ASSY.

Brake Pump To Brake Valve

1шт.

4

367658A1

PLATE

Clamp Cover Plated

2шт.

5

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

8

372453A1

BLOCK

Tube Mounting

1шт.

9

87000230

PLATE

Hose Clamp

1шт.

10

8606002

CLAMP

Tube Mounting

1шт.

11

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

1шт.

12

84531453

HYDRAULIC HOSE,15.88mm ID x 3240mm L, SAE 100R17

Front Brake

1шт.

13

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1шт.

14

84468974

HOSE,19.05mm ID x 1365mm L, SAE 100R17

Valve

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

17

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

1шт.

18

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

21

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

23

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

24

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

25

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.
