(25.102.01) - DIFFERENTIAL, FRONT AND REAR, OPEN AND LOCK AXLE

Запчасти Case 1121F (25.102.01) - DIFFERENTIAL, FRONT AND REAR, OPEN AND LOCK AXLE (25) - FRONT AXLE SYSTEM

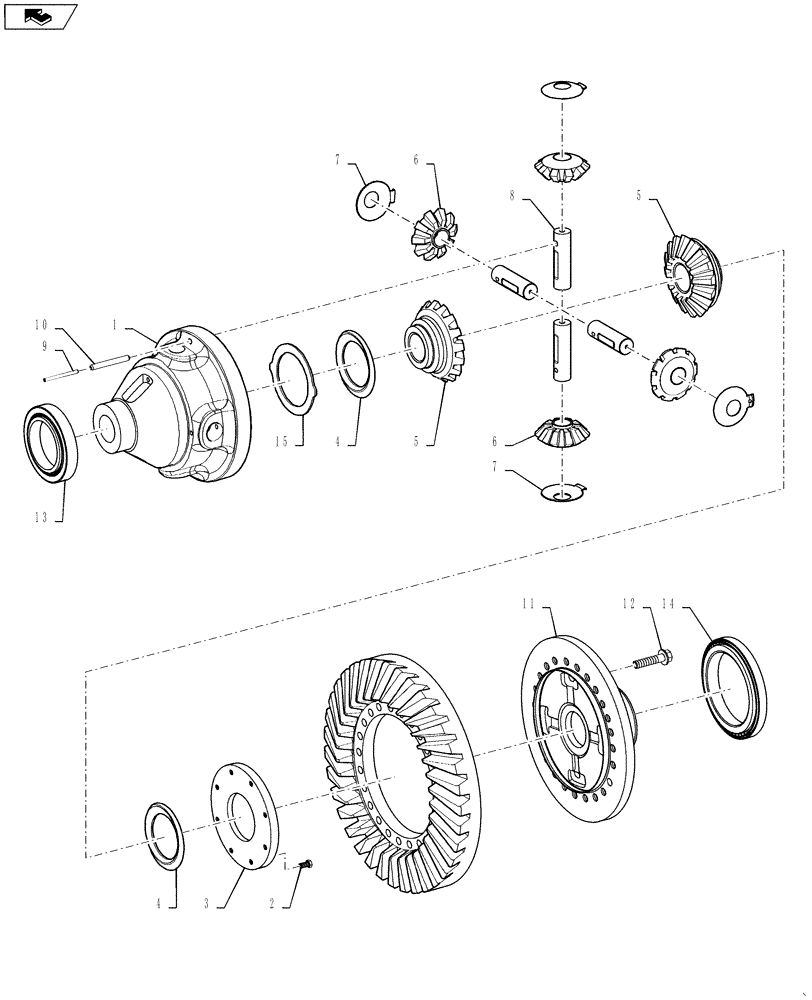

Схема запчастей Case 1121F - (25.102.01) - DIFFERENTIAL, FRONT AND REAR, OPEN AND LOCK AXLE (25) - FRONT AXLE SYSTEM
3
11
7
4
15
7
8
6
12
home
14
2
13
5
4
1
9
6
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84259022

AXLE

1шт.

84259022R

REMAN-REAR AXLE

Open Differential

1шт.

84259022C

CORE-REAR AXLE

Return Number

1шт.

84259018R

REMAN-FRT AXLE wo DL

Front Axle, Open Differential

1шт.

84259018C

CORE-FRONT AXLE

Return Number

1шт.

84258244R

REMAN-FRONT AXLE w/D

1шт.

84258244C

CORE-FRT AXLE W/DIFF

Return Number

1шт.

1

84395545

DIFFERENTIAL

1шт.

2

84395547

SCREW

8шт.

3

84395563

WASHER

1шт.

4

84395567

THRUST WASHER

2шт.

5

84395568

BEVEL GEAR

2шт.

6

84395570

DIFFERENTIAL GEAR

4шт.

7

84395572

THRUST WASHER

4шт.

8

84395574

AXLE DIFFERENTIAL

4шт.

9

84395734

SLOTTED PIN

4шт.

10

84395735

SLOTTED PIN

4шт.

11

84395736

DIFFERENTIAL

1шт.

12

84395737

SCREW

24шт.

13

84395738

ROLLER BEARING

1шт.

14

84395739

ROLLER BEARING

1шт.

15

84395740

WASHER

1шт.
