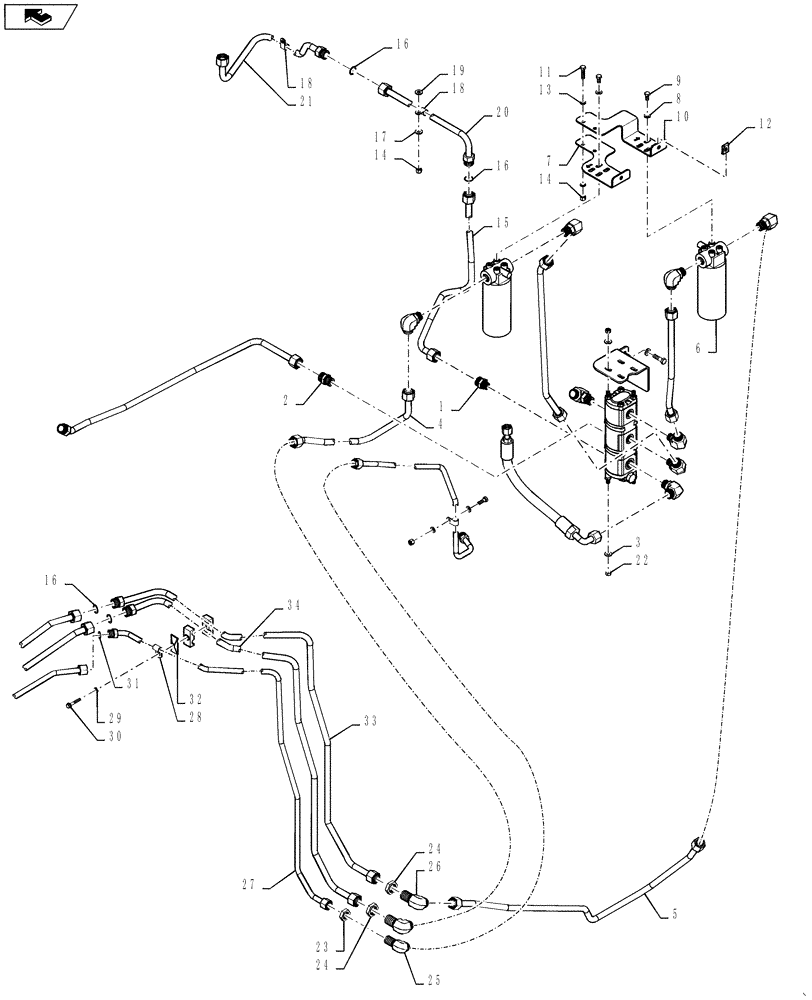

Запчасти Case 1121F (25.100.03[03]) - AXLE COOLER (25) - FRONT AXLE SYSTEM

1

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

1шт.

2

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

4

84419535

HYD TUBE

1шт.

5

84490905

TUBE

1шт.

6

87529364

FILTER

Assembly, For Just Filter Order 294721a1

2шт.

7

84391489

BRACKET, SUPPORTING

1шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

8шт.

10

84385151

BRACKET, SUPPORTING

1шт.

11

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

12

833-40310

NUT,M10, U

4шт.

13

892-11010

LOCK WASHER,M10

4шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

15

84402159

HYD TUBE

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

17

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

20

84409390

HYD TUBE

1шт.

21

84409392

HYD TUBE

1шт.

22

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

23

701-919

BHD LOCK NUT,1" - 14

1шт.

24

701-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

25

701-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

26

86837484

ELBOW,90 Degree, 1 3/16"-12. ORFS, Blkhd

2шт.

27

84382855

HYD TUBE

1шт.

28

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

30

844-8050

BOLT,M8 x 1.25 x 50mm, Cl 8.8

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

32

1347127C1

PLATE

1шт.

33

84382857

HYD TUBE

1шт.

34

84382859

HYD TUBE

1шт.
