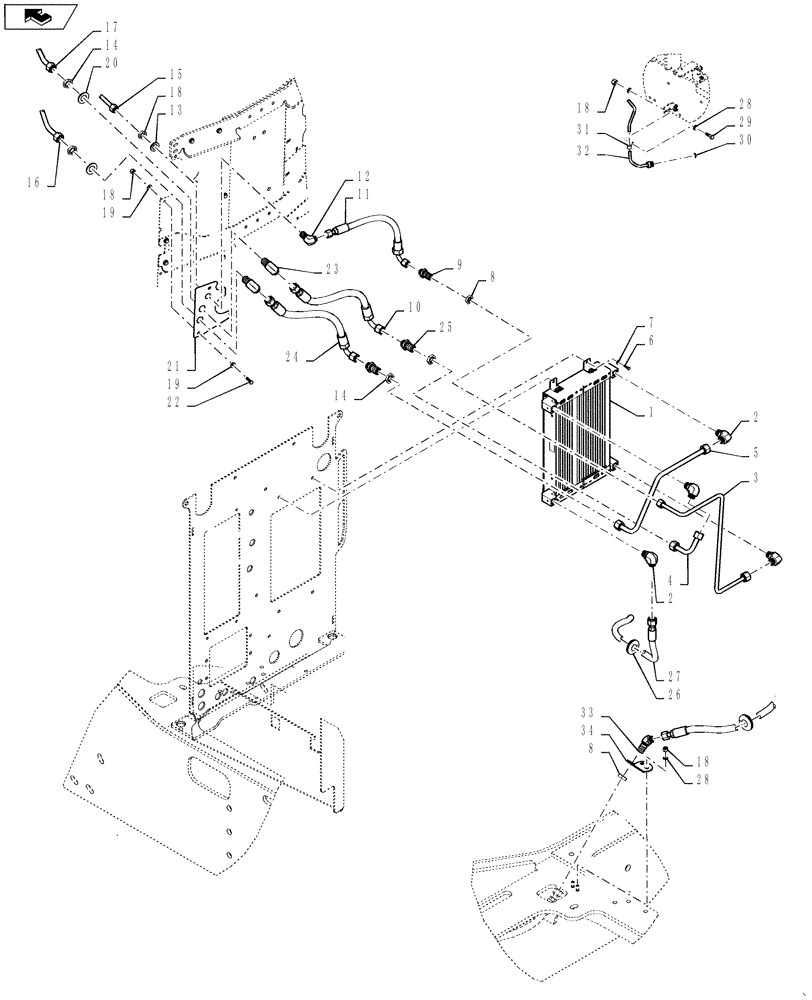

Запчасти Case 1121F (25.100.03[02]) - AXLE COOLER (25) - FRONT AXLE SYSTEM

1

84399999

COOLER ASSY.

1шт.

2

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

6шт.

3

84398373

HYD TUBE

1шт.

4

84398376

HYD TUBE

1шт.

5

84398378

HYD TUBE

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

701-919

BHD LOCK NUT,1" - 14

3шт.

9

701-123

UNION,1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

10

84398381

HOSE ASSY.

1шт.

11

84402100

HOSE ASSY.

1шт.

12

701-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

13

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

1шт.

14

701-1249

BHD LOCK NUT,1-3/16" - 12

4шт.

15

84368620

HYD TUBE

1шт.

16

84385113

HYD TUBE

1шт.

17

84382840

HYD TUBE

1шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

19

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

20

86511329

WASHER,31mm ID x 56mm OD x 4mm Thk

2шт.

21

84382823

STEEL PLATE

1шт.

22

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

23

86837484

ELBOW,90 Degree, 1 3/16"-12. ORFS, Blkhd

2шт.

24

84402101

HOSE ASSY.

1шт.

25

701-140

UNION,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

2шт.

26

87645502

GROMMET

1шт.

27

84489968

HOSE ASSY.,15.88mm ID x 748mm L, SAE 100R1

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

29

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

30

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

31

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

32

84489966

TUBE

1шт.

33

87017731

ELBOW,45 Degree, 1"-14 Blkhd, ORFS

1шт.

34

84385140

BRACKET, SUPPORTING

1шт.
