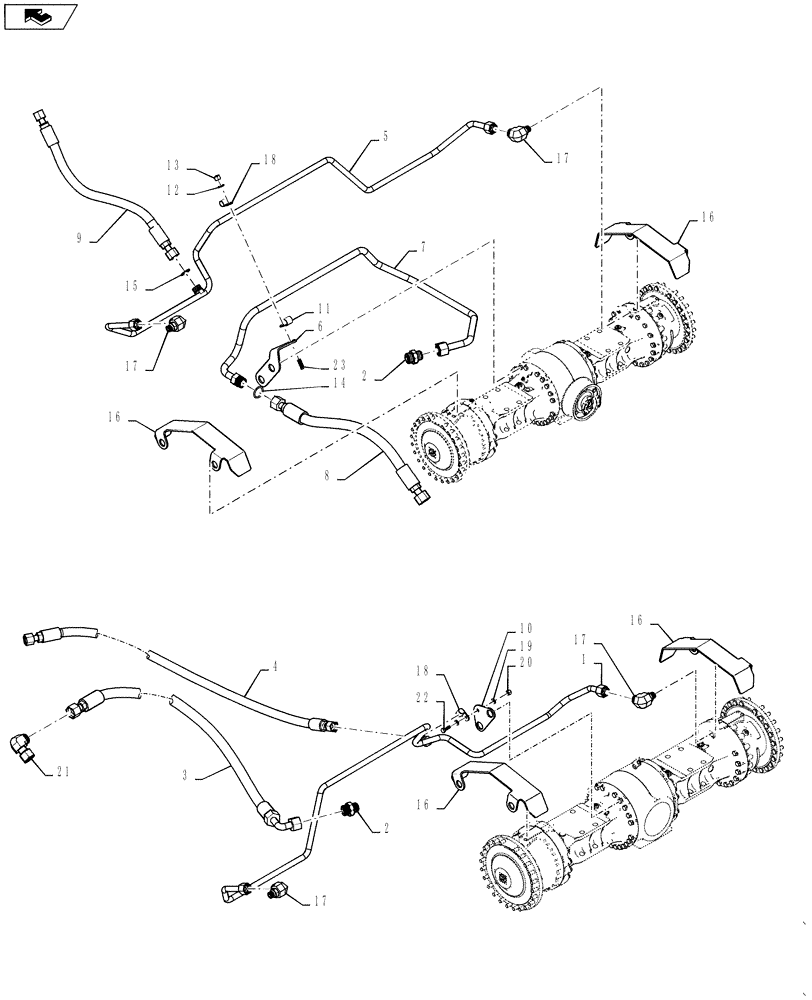

Запчасти Case 1121F (25.100.03[01]) - AXLE COOLER LINE INSTALLATION (25) - FRONT AXLE SYSTEM

1

84489952

TUBE

Return Front Axle HD, Serial Range: -NCF216029

1шт.

1

84576119

TUBE

Return Front Axle HD, Start Serial: NCF216030

1шт.

2

87526208

CHECK VALVE

2шт.

3

84489957

HOSE ASSY.,19.05mm ID x 2345mm L, SAE 100R1

Suction Front Axle

1шт.

4

84489956

HOSE ASSY.,15.88mm ID x 2533mm L, SAE 100R1

Return Front Axle, Serial Range: -NCF216029

1шт.

4

84483052

HOSE ASSY.,15.88mm ID x 2489mm L, SAE 100R1

Return Front Axle, Start Serial: NCF216030

1шт.

5

84489961

TUBE

Return Axle Rear

1шт.

6

84489960

BRACKET

Support Rear Axle

1шт.

7

84382828

TUBE

Rear Axle Suction

1шт.

8

84489958

HOSE ASSY.

Suction Rear Axle

1шт.

9

84489959

HOSE ASSY.,15.88mm ID x 656mm L, SAE 100R1

Return Rear Axle

1шт.

10

84489955

BRACKET

Tube Support Front Axle

1шт.

11

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

84391508

BRACKET, SUPPORTING

4шт.

17

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

4шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

21

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1шт.

22

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

23

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.
