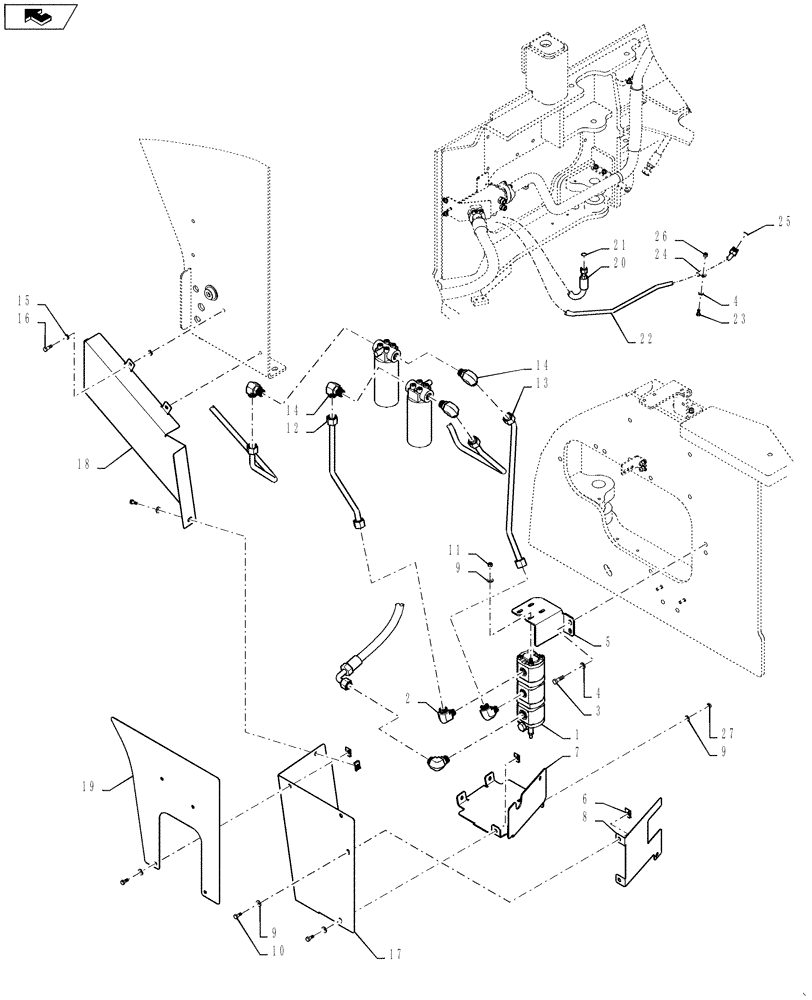

Запчасти Case 1121F (25.100.03[01]) - AXLE COOLER (25) - FRONT AXLE SYSTEM

1

87492034

HYDRAULIC PUMP

1шт.

1

47907409

SEAL KIT

Seal Kit for Pump

1шт.

2

700-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

2шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

5

84385142

BRACKET, SUPPORTING

1шт.

6

833-40310

NUT,M10, U

7шт.

7

84493062

BRACKET

1шт.

8

84402592

COVER

1шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

14шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

11шт.

11

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

12

84385130

HYD TUBE

1шт.

13

84385132

HYD TUBE

1шт.

14

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

4шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

17

84396669

COVER

1шт.

18

84468332

COVER

1шт.

19

84468335

COVER

1шт.

20

84382852

HOSE ASSY.

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

84489964

TUBE

1шт.

23

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

24

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

26

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

28

294721A1

HYDRAULIC OIL FILTER

Case

2шт.
