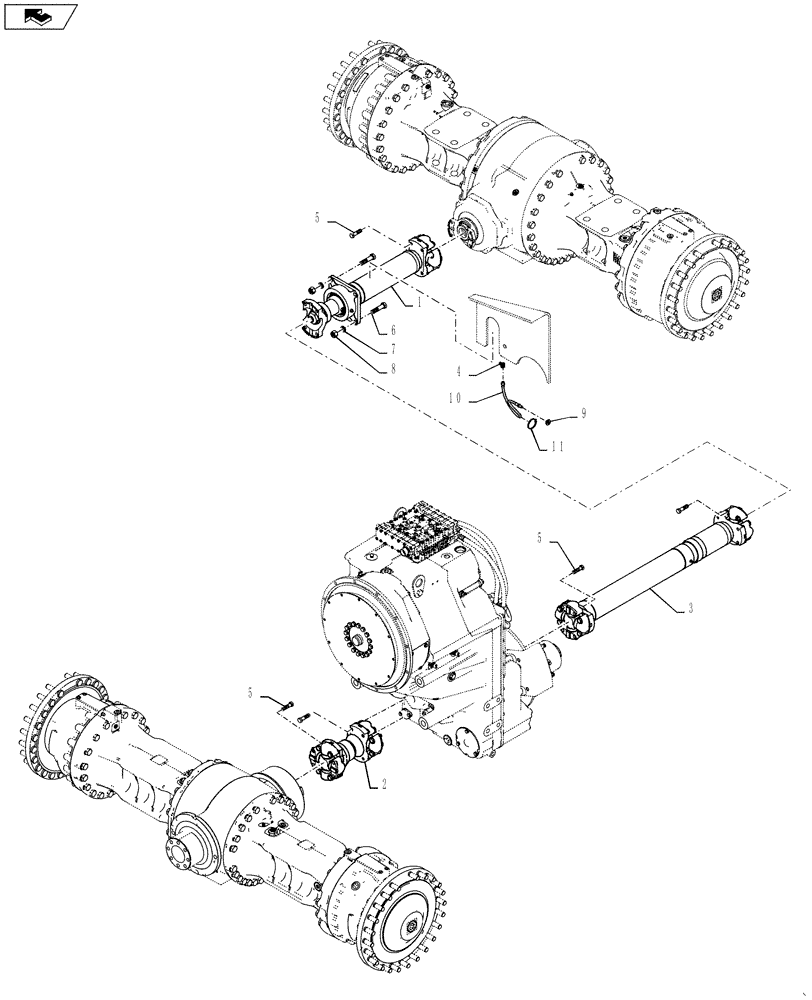

Запчасти Case 1121F (21.315.01) - DRIVE SHAFT (21) - TRANSMISSION

1

84344521

DRIVE SHAFT

Front, See Figure 21.315.01 (01)

1шт.

2

84466497

DRIVE SHAFT

Rear, See Figure 21.315.01 (02)

1шт.

3

84466491

DRIVE SHAFT

Center, See Figure 21.315.01 (03)

1шт.

4

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

5

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

20шт.

6

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

7

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

8

829-1416

NUT,M16, Cl 10

4шт.

9

F53473

LOCK NUT,1/8-27 NPSM

1шт.

10

84338959

HOSE ASSY.,3.56mm ID x 620mm L

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
