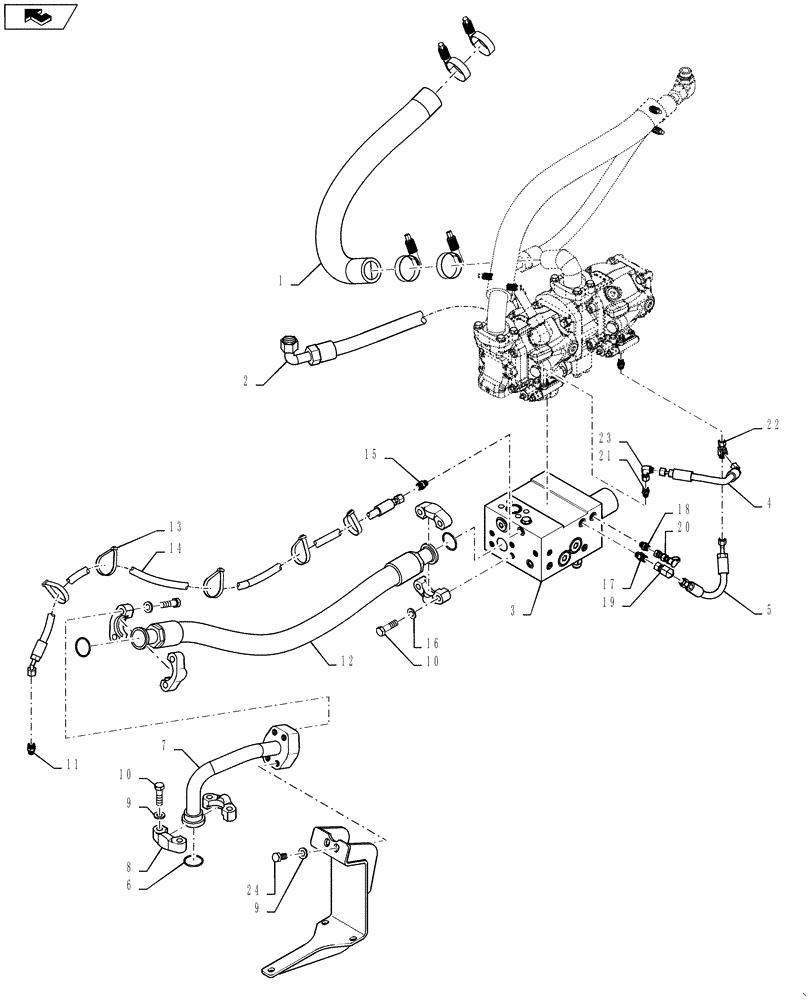

Запчасти Case 1121F (21.130.03) - HYD INSTALL PUMP WITH VALVE (21) - TRANSMISSION

1

84305596

HOSE,50.8mm ID x 792.8mm L, SAE 100R4

Hose

1шт.

2

84367004

HOSE ASSY.

Hose

1шт.

3

84305998

VALVE

Valve

1шт.

4

84328973

HOSE,9.53mm ID x 397mm L, SAE 100R16

Hose

1шт.

5

84328981

HOSE,9.53mm ID x 334mm L, SAE 100R16

Hose

1шт.

6

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

O-Ring

3шт.

7

84322175

TUBE

Tube

1шт.

8

86980734

CLAMP

Clamp

6шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Washer

10шт.

10

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

12шт.

11

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Hyd Connector

2шт.

12

84322170

HOSE,38.1mm ID x 1230mm L, SAE 100R13

Hose

1шт.

13

84266050

CABLE TIE,384mm L, Polyamide

Cable Strap

5шт.

14

84305605

HOSE

Hose

1шт.

15

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Connector

2шт.

16

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Washer

4шт.

17

84327039

CHECK VALVE

Check Valve

1шт.

18

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Connector

3шт.

19

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Elbow

1шт.

20

190117A1

COUPLING

Coupling

3шт.

21

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Connector

2шт.

22

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Tee

1шт.

23

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Elbow

1шт.

24

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

Bolt

2шт.
