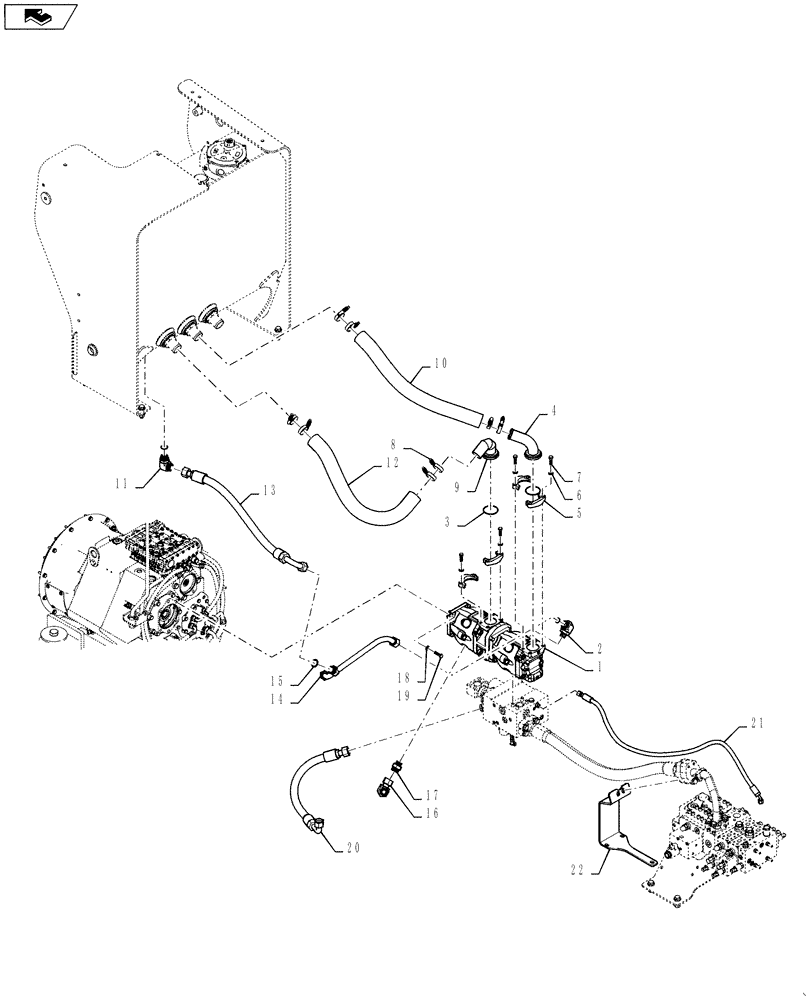

Запчасти Case 1121F (21.130.02) - HYD PUMP WITH VALVE (21) - TRANSMISSION

1

84327081

HYDRAULIC PUMP,100 CC

Pump 100 x 100 cc tandem

1шт.

84327081R

REMAN-HYD PUMP

1121F TIER 4 (4/10-)

1шт.

84327081C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

Elbow 90 Deg

1шт.

3

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

O-Ring

2шт.

4

87470879

HYD TUBE

Tube Hyd

1шт.

5

L14386

CLAMP

Clamp

4шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Washer

8шт.

7

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Bolt

8шт.

8

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Hose Clamp

8шт.

9

84278046

HYD TUBE

Hyd Tube

1шт.

10

84305595

HOSE,50.8mm ID x 826.8mm L, SAE 100R4

Hose Suction

1шт.

11

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Elbow

1шт.

12

84305596

HOSE,50.8mm ID x 792.8mm L, SAE 100R4

Hose Suction

1шт.

13

84361310

HOSE ASSY.,25.4mm ID x 791.4mm L, SAE 100R1

Hose Pump To Tank

1шт.

14

84361309

HYD TUBE

Hyd Tube

1шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

O-Ring

2шт.

16

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Elbow

1шт.

17

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Connector

1шт.

18

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

Washer

4шт.

19

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

Bolt

4шт.

20

84367004

HOSE ASSY.

Hose Assy

1шт.

21

84305605

HOSE

Hose

1шт.

22

84322201

BRACKET

Bracket

1шт.
