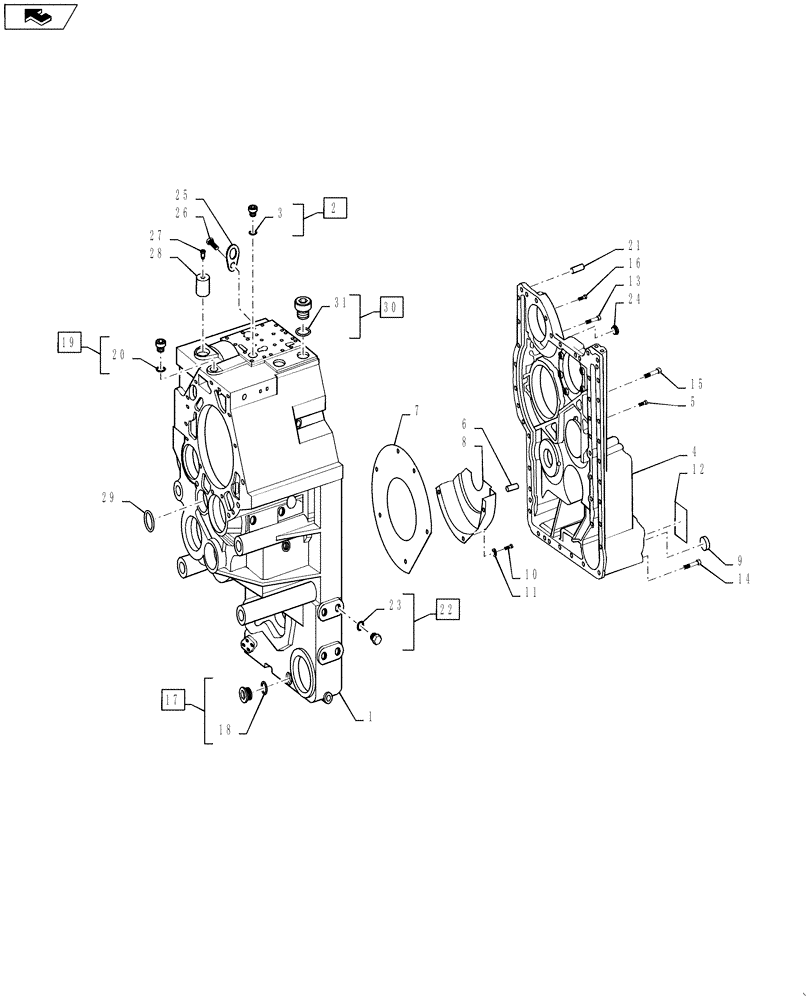

Запчасти Case 1021F (21.116.05) - TRANSMISSION HOUSING (21) - TRANSMISSION

1

8605385

HOUSING

1шт.

2

84396052

PLUG

Includes O-Ring

1шт.

3

79101802

GASKET,2mm Thk x 23mm ID

O-Ring

1шт.

4

8605387

HOUSING

1шт.

5

8605388

SCREW,M10 x 32mm

14шт.

6

100073A1

PIN, SPLIT (COTTER)

PIN, COTTER

2шт.

7

87582460

SHEET

Cover

1шт.

8

87582461

SHEET

Cover

1шт.

9

8900126574

COVER

Seal Cap

1шт.

10

8605389

SCREW,M8 x 16mm, Cl 8.8

Cap

5шт.

11

84396005

WASHER

4шт.

12

NSS

NOT SOLD SEPARAT

Plate Must Order # 1

1шт.

13

8605390

SCREW,Hex Skt, M10 x 55mm, Cl 8.8

1шт.

14

8605391

SCREW,#10 - 70, Cl 8.8

8шт.

15

8605392

SCREW,Hex, M10 x 70mm, Cl 8.8

7шт.

16

8605393

SCREW,Hex Skt, M10 x 40mm, Cl 8.8

8шт.

17

84357352

PLUG

Includes O-Ring

1шт.

18

8603318

O-RING

1шт.

19

84352088

HEX SOCKET PLUG

Includes O-Ring

1шт.

20

84352089

O-RING

1шт.

21

84396063

PIN

1шт.

22

84499128

PLUG

Screw Plug Includes O-Ring

1шт.

23

79101802

GASKET,2mm Thk x 23mm ID

O-Ring

1шт.

24

8900125380

PLUG

1шт.

25

100081A1

LARGE PLATE

PLATE, LARGE

2шт.

26

100082A1

BOLT

2шт.

27

73142752

BREATHER

1шт.

28

129650A1

ADAPTER

2шт.

29

8605395

O-RING,54mm ID x 4mm Width

1шт.

30

84397849

PLUG

Includes O-Ring

2шт.

31

8603207

O-RING,2.5mm Thk x 38mm ID

2шт.
