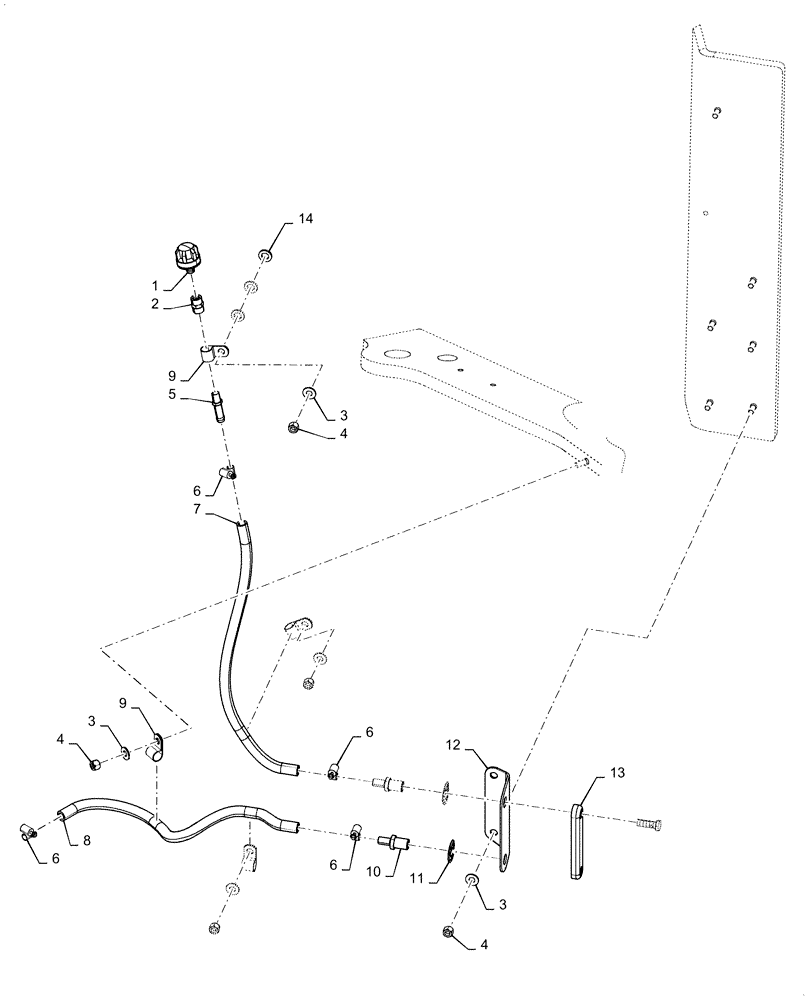

Запчасти Case 1021F (21.116.01[01]) - SIGHTGLASS INSTALLATION (21) - TRANSMISSION

1

1971726C1

BREATHER,1/4" - 18

1шт.

2

217-1101

HYD CONNECTOR,1/4"-18 NPTF, Female

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

5

217-229

FITTING,1/2" Hose X 1/4" NPTF Beaded

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

7

84483030

HOSE,12.7mm ID x 614mm L, SAE 30R2

Breather Fill Tube

1шт.

8

47667478

HOSE

Sight Gauge

1шт.

9

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

4шт.

10

76086829

HYD CONNECTOR

2шт.

11

131-141

PUSH-ON NUT,.74", Push-on

2шт.

12

84395977

BRACKET

Sight Gauge Mounting

1шт.

13

86988366

SIGHTGLASS

1шт.

14

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.
