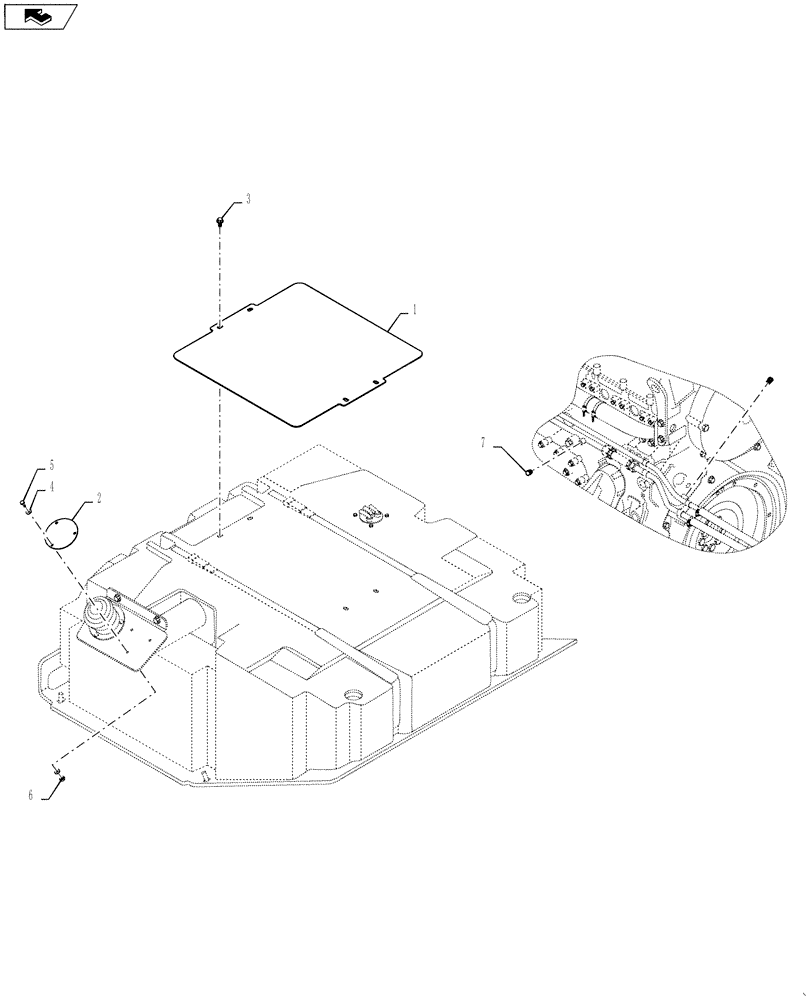

Запчасти Case 1021F (10.500.04) - DEF TANK COVER, INTERNATIONAL REGION ONLY (10) - ENGINE

1

84409417

COVER PLATE

Fuel Tank

1шт.

2

84409416

COVER PLATE

Def Fill

1шт.

3

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

7

217-405

PLUG,Hex Hd, 1/4" - 18 NPT

2шт.
