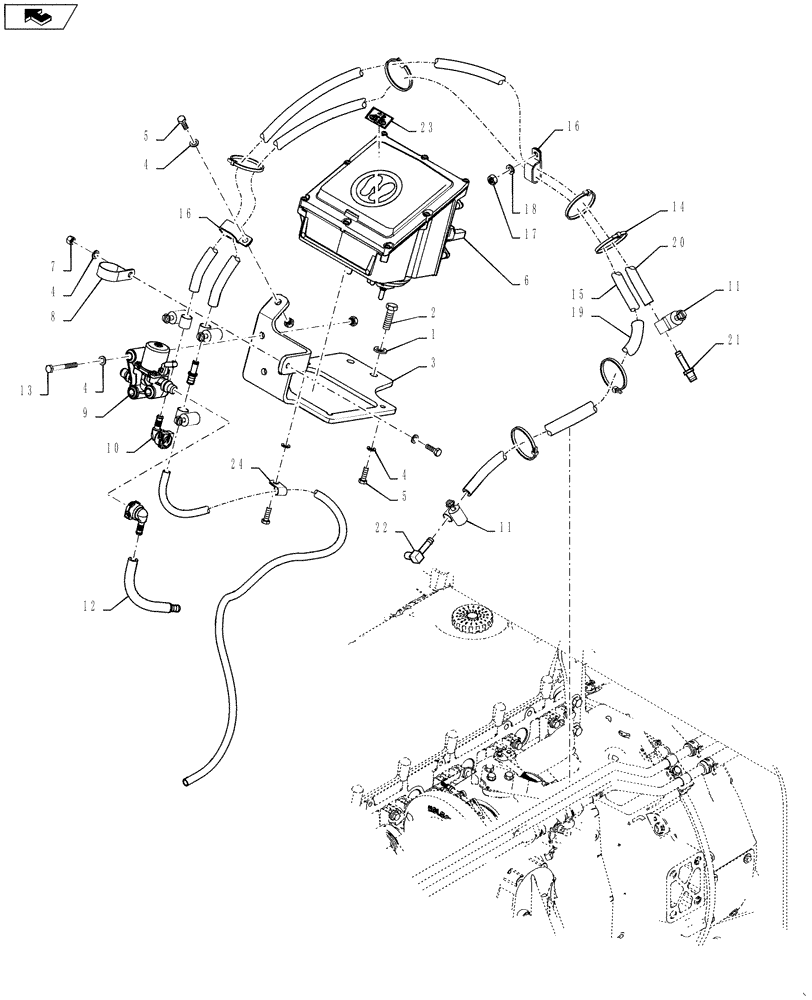

Запчасти Case 1021F (10.500.02) - DEF LINE INSTALLATION (10) - ENGINE

1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

2

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

3

84321150

BRACKET

Supply Module

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

6

84246892

MODULE

Dosing, For filters see 25,26

1шт.

6

84246892R

REMAN-MODULE

Dosing

1шт.

6

84246892C

CORE-MODULE

Return Number

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

8

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

9

84151635

HEATER VALVE

1шт.

10

84182163

FITTING

2шт.

11

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

6шт.

12

84323524

HOSE

Heater

1шт.

13

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

15

84412668

HEATER HOSE,9.53mm ID x 1590mm L, SAE 20R3

1шт.

16

L101181

CLAMP,0.75" D Clamping pipes x 2

2шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

18

892-11010

LOCK WASHER,M10

1шт.

19

84412679

HOSE PROTECTION

Sleeve

1шт.

20

84412671

HEATER HOSE,9.53mm ID x 1165mm L, SAE 20R3

1шт.

21

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

22

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

23

84284896

DECAL,DEF TANK identification label

1шт.

24

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

25

84254852

FILTER

Main Filter, For cap see 27

1шт.

26

84247272

FILTER,In-Line

Inline

1шт.

27

47401714

FILTER HEAD

1шт.
