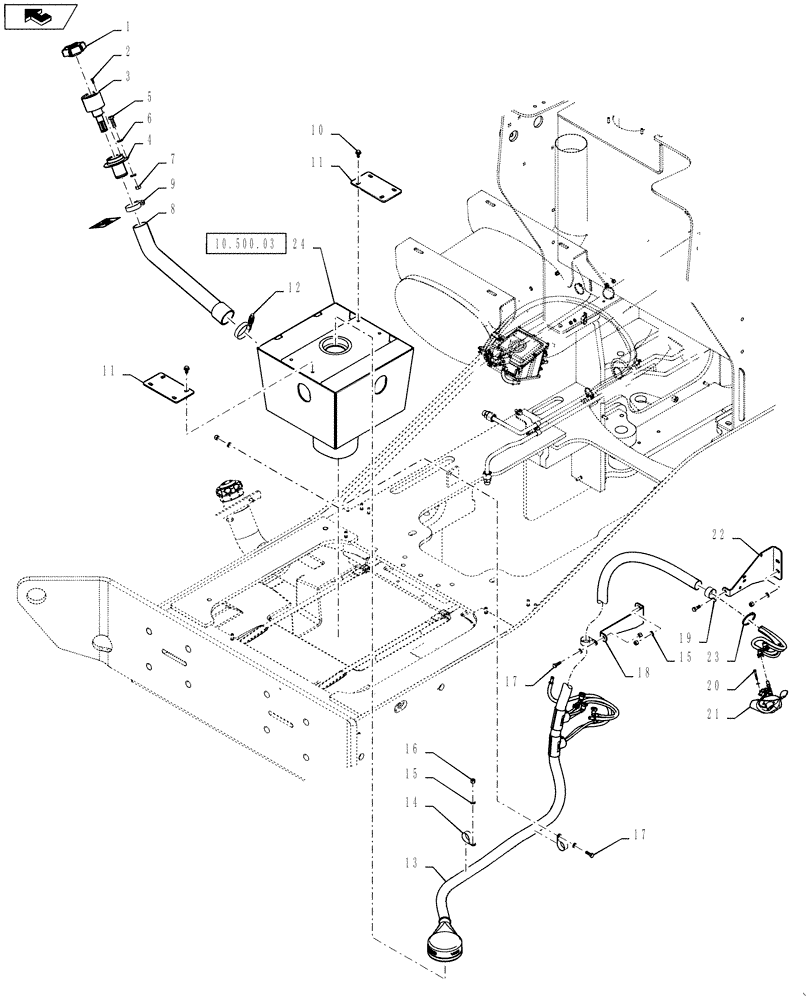

Запчасти Case 1021F (10.500.01) - DEF LINE INSTALLATION (10) - ENGINE

1

84206552

FILLER CAP,Male

Non-Lockable

1шт.

2

84246766

HEX SOC SCREW,M4 x 12mm, SST

4шт.

3

87483158

NECK FILLER

1шт.

3

47421733

NECK FILLER

, Start Year: 08-AUG-13

1шт.

4

84315307

FILLER

1шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

8

84355880

FUEL HOSE

Urea Fill

1шт.

9

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

1шт.

10

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

8шт.

11

84260724

RETAINING PLATE

Tank Hold

2шт.

12

L115548

CLAMP,57.15mm - 79.38mm

1шт.

13

84474949

HOSE

1шт.

14

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

3шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

18

84322611

BRACKET

Bundle Support

1шт.

19

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

20

84233542

HEX SOC SCREW

3шт.

21

84247021

MODULE,Dosing Injector

Urea

1шт.

22

84393064

BRACKET

Sensor Mount

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

24

NSS

NOT SOLD SEPARAT

See Fig 10.500.03

1шт.
