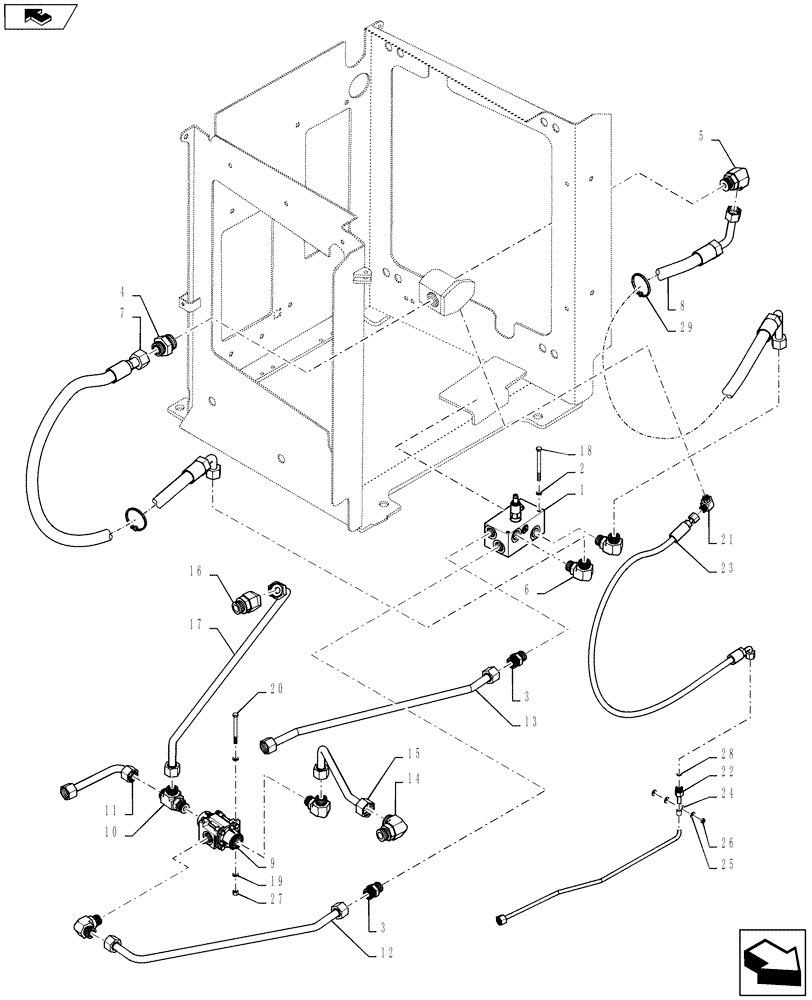

Запчасти Case 1021F (10.414.02[02]) - STANDARD FAN RELIEF VALVE (10) - ENGINE

1

8500562

HYDRAULIC VALVE

1шт.

2

892-11008

LOCK WASHER,8mm ID

2шт.

3

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

4

700-158

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M42 x 2 Male ORB

1шт.

5

86579698

90 ELBOW,1 3/16"-12 ORFS x M33 x 2 ORB

1шт.

6

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

4шт.

7

84305616

HOSE

Valve To Fan

1шт.

8

84305617

HOSE

Valve To Fan

1шт.

9

87326981

BY-PASS VALVE

1шт.

10

700-428

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

11

84305618

TUBE

1шт.

12

84378402

TUBE

Cooling Box Valve Out

1шт.

13

84378400

TUBE

Cooling Box Valve In

1шт.

14

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

15

84315419

TUBE

1шт.

16

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Cooler In

1шт.

17

84315421

TUBE

1шт.

18

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

20

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

21

700-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

1шт.

22

84315464

TUBE

Drain Line

1шт.

23

84315426

HOSE

Drain From Fan

1шт.

24

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

1шт.

25

895-30100

WASHER,6.6mm ID x 15mm OD x 1.6mm Thk

3шт.

26

825-1406

NUT,M6, Cl 8

1шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
