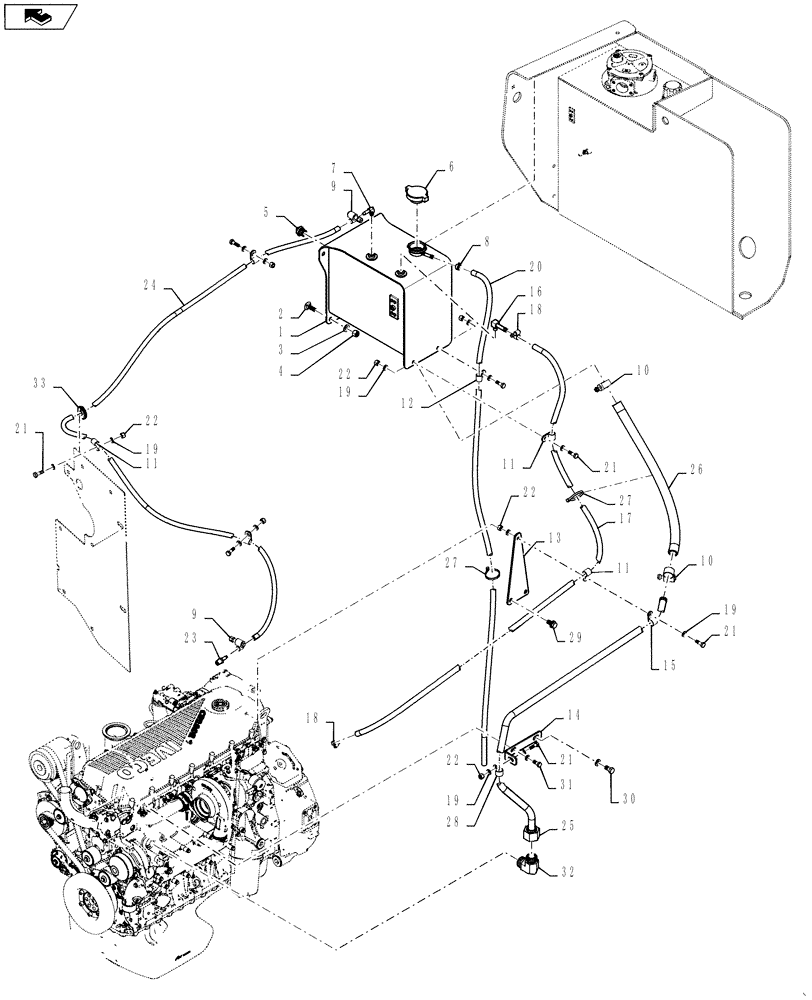

Запчасти Case 1021F (10.400.03) - SURGE TANK (10) - ENGINE

1

84518328

TANK

1шт.

2

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

4шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

5

406721A1

GAUGE

Sight

1шт.

6

A170241

RADIATOR CAP

1шт.

7

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

8

A171099

HOSE CLAMP,13.2mm - 15.4mm

1шт.

9

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

10

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

5шт.

12

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

13

84290460

BRACKET, SUPPORTING

Tube and Hose

1шт.

14

84290461

BRACKET, SUPPORTING

Tube

1шт.

15

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

2шт.

16

87584286

ELBOW,3/8" Hose Barb x 1/8" NPTF

1шт.

17

31-2281

HOSE,9.5 mm ID x 1828.80 mm

Engine Vent

1шт.

18

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

19

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

20

87368234

HOSE,7.90 mm ID x 1210.00 mm

1шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

7шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

23

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

1шт.

24

84290467

HOSE, BULK

HOSE, METERS Radiator Vent

1шт.

25

84290463

RIGID TUBE

1шт.

26

84290464

HOSE

1шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

28

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

29

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

31

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

32

84559342

90 ELBOW

Also Order 34

1шт.

33

248-2344

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

1шт.

34

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
