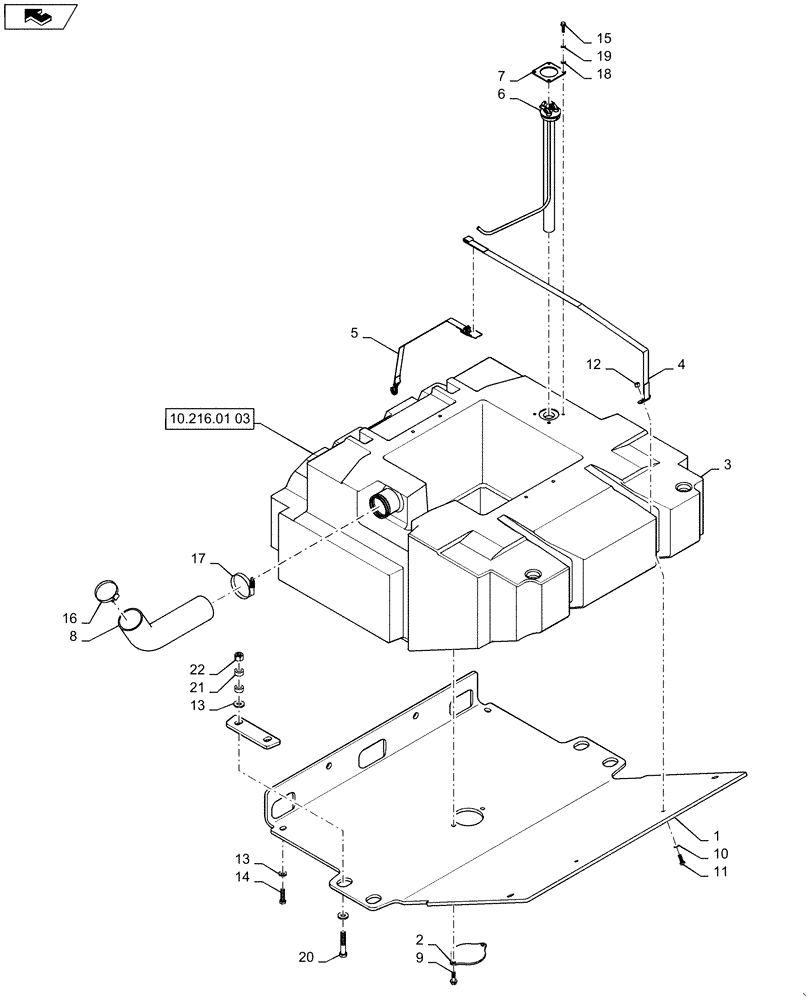

Запчасти Case 1021F (10.216.01[01]) - FUEL TANK CONNECTIONS (10) - ENGINE

1

84284945

PLATE

1шт.

2

84260723

COVER PLATE

1шт.

3

84425120

FUEL TANK

SEE FIG. 10.216.01 (03)

1шт.

4

366904A1

SECURING STRAP

2шт.

5

84308777

SECURING STRAP

2шт.

6

84284948

SENDER UNIT

1шт.

7

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

8

84355884

FUEL HOSE

1шт.

9

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

10

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

10шт.

14

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

15

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

16

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

17

L116820

CLAMP,82.55mm - 104.78mm

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Washer

4шт.

19

893-11006

LOCK WASHER,Ext Tooth, M6

Tooth Washer

4шт.

20

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

21

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Spacer

8шт.

22

86012007

LOCK NUT,M16 x 2, Cl 10

4шт.
