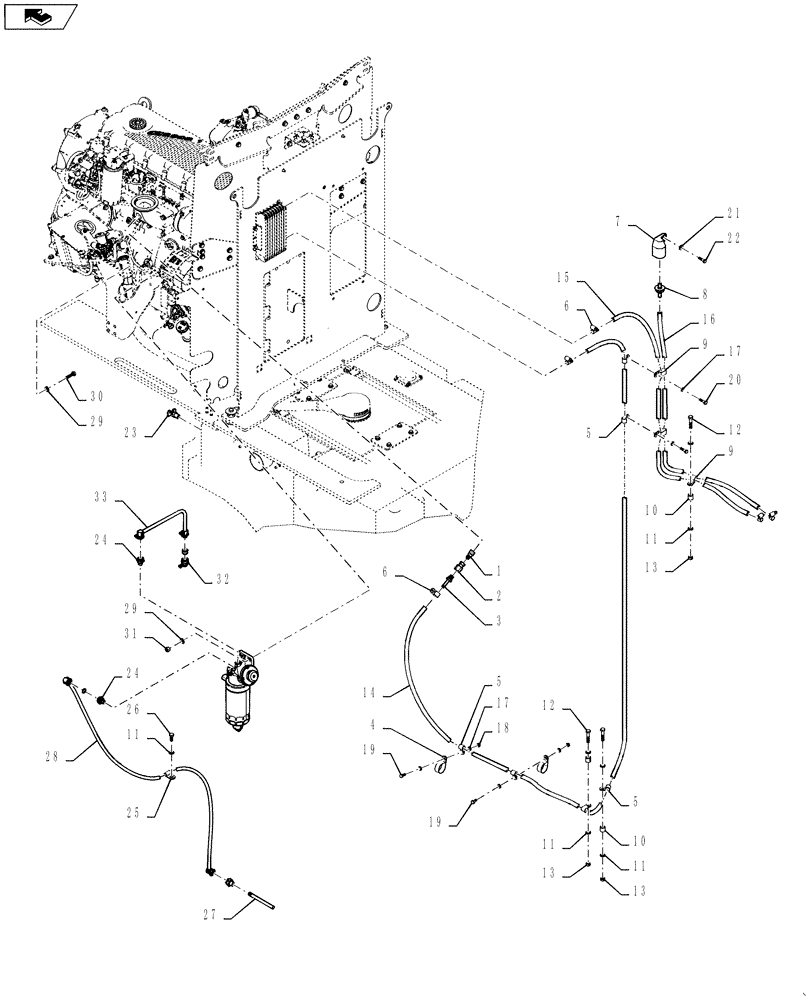

Запчасти Case 1021F (10.214.01) - FUEL LINE (10) - ENGINE

1

84332208

ADAPTER

1шт.

2

86624010

HYD CONNECTOR,37 Degree, Sw, 9/16"-18" x 3/8"-18 NPTF

1шт.

3

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

1шт.

4

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

2шт.

5

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

6шт.

6

214-1510

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm, W/ Liner

5шт.

7

186814A1

CAP

1шт.

8

T103750

BREATHER

1шт.

9

31-1070

CLAMP,5/8", 3/8" Bolt, Double

3шт.

10

87307825

SPACER

3шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

12

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

3шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

14

84412477

FUEL HOSE

1шт.

15

84412613

FUEL HOSE

1шт.

16

84412614

FUEL HOSE

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

19

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

20

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

22

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

23

217-92

COCK

1шт.

24

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

2шт.

25

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

26

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

27

8602537

TUBE,12mm OD x 171mm L

1шт.

28

84326403

HOSE

1шт.

29

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

30

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

31

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

32

84345040

ADAPTER

1шт.

33

84402179

FUEL HOSE

1шт.
