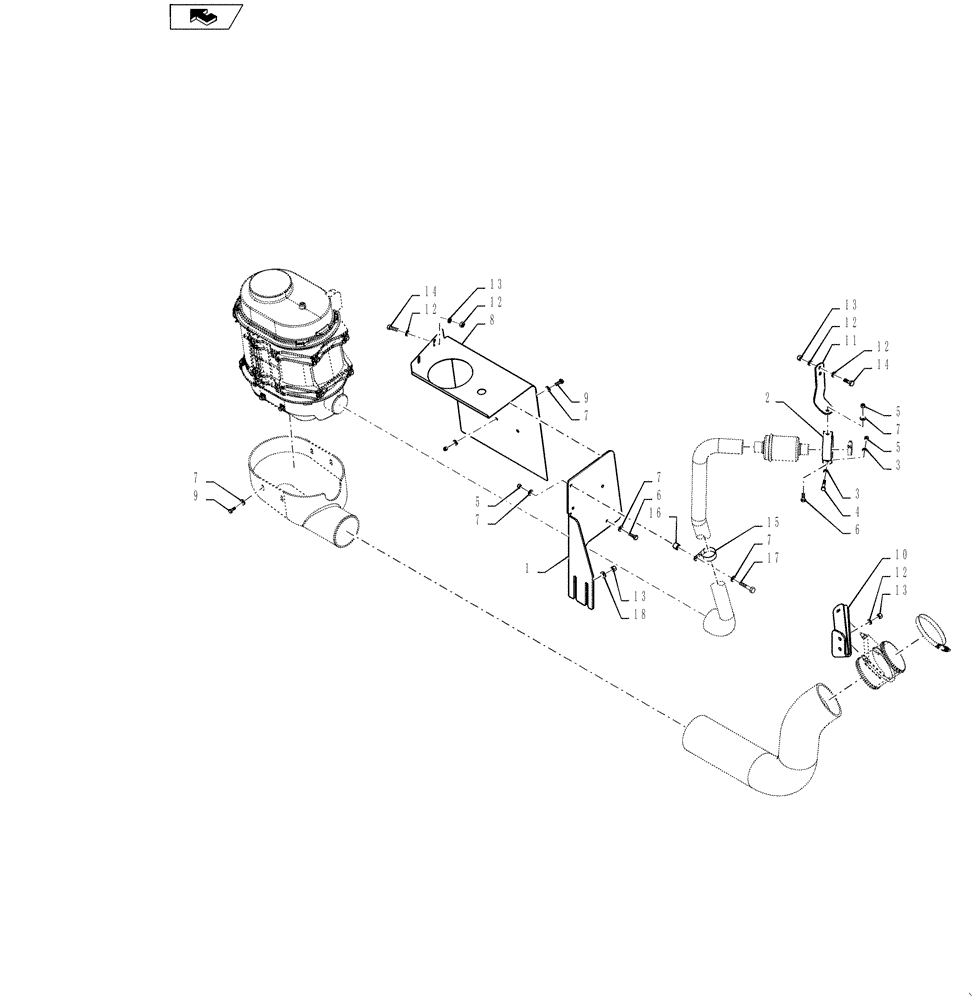

Запчасти Case 1021F (10.202.02) - AIR CLEANER HARDWARE (10) - ENGINE

1

84491532

BRACKET

1шт.

2

90-7639T1

CLAMP

1шт.

3

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

4

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

7

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

5шт.

8

84489982

HEAT SHIELD

1шт.

9

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

10шт.

10

84415458

BRACKET, SUPPORTING

1шт.

11

84261853

BRACKET, SUPPORTING

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

15

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

16

87305403

SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk

1шт.

17

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

18

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.
