Запчасти Case 1021F (90.160.05) - CAB - EXTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

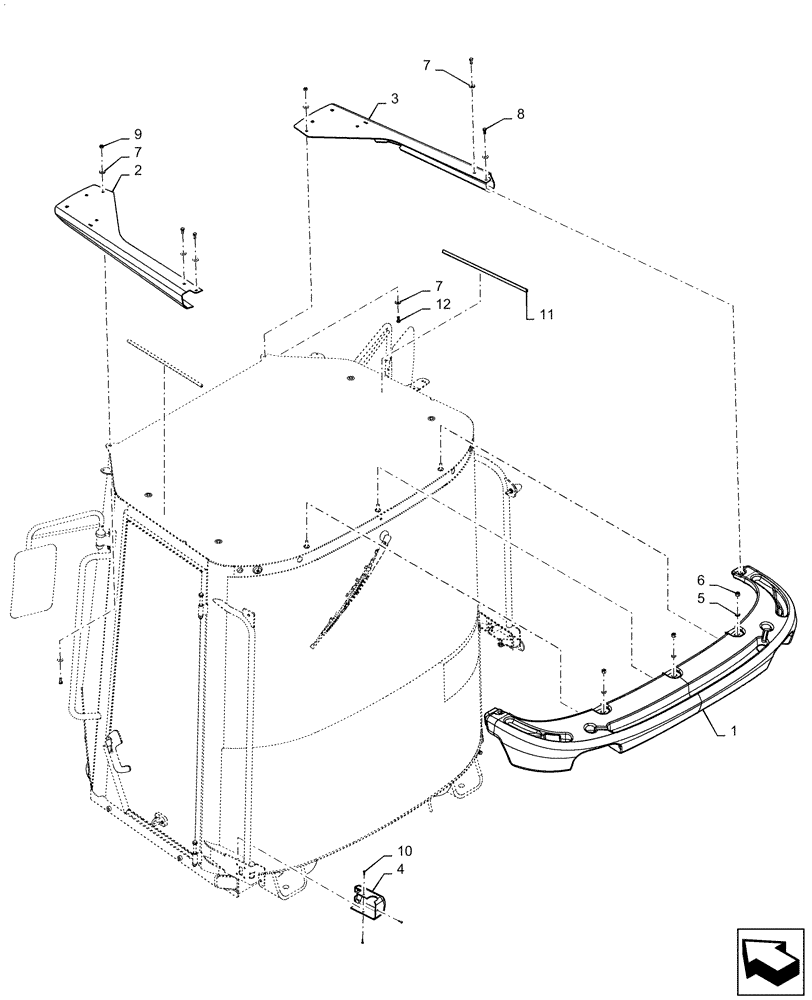

Схема запчастей Case 1021F - (90.160.05) - CAB - EXTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
1
4
8
7
7
9
5
3
2
7
6
10
12

Артикул

Название

Примечание

Количество

1

84496735

MOLDING

Rear

1шт.

2

84496721

MOLDING

Left Front

1шт.

3

84496720

MOLDING

Right Front

1шт.

4

87493705

COVER

Door Latch

1шт.

5

87664050

WASHER,11mm ID x 20mm OD x 2mm Thk

M11 x 20 x 2

3шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

7

87664051

WASHER,9mm ID x 24mm OD x 2mm Thk

M9 x 24 x 2

8шт.

8

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

9

16100814

NUT,M8, Cl 8, DAC

M6.6 x 12 x 1.6

2шт.

10

1276118C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

3шт.

11

87720305

MOLDING

Cut to 480 mm (18 - 29/32 in)

2шт.

12

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 12
