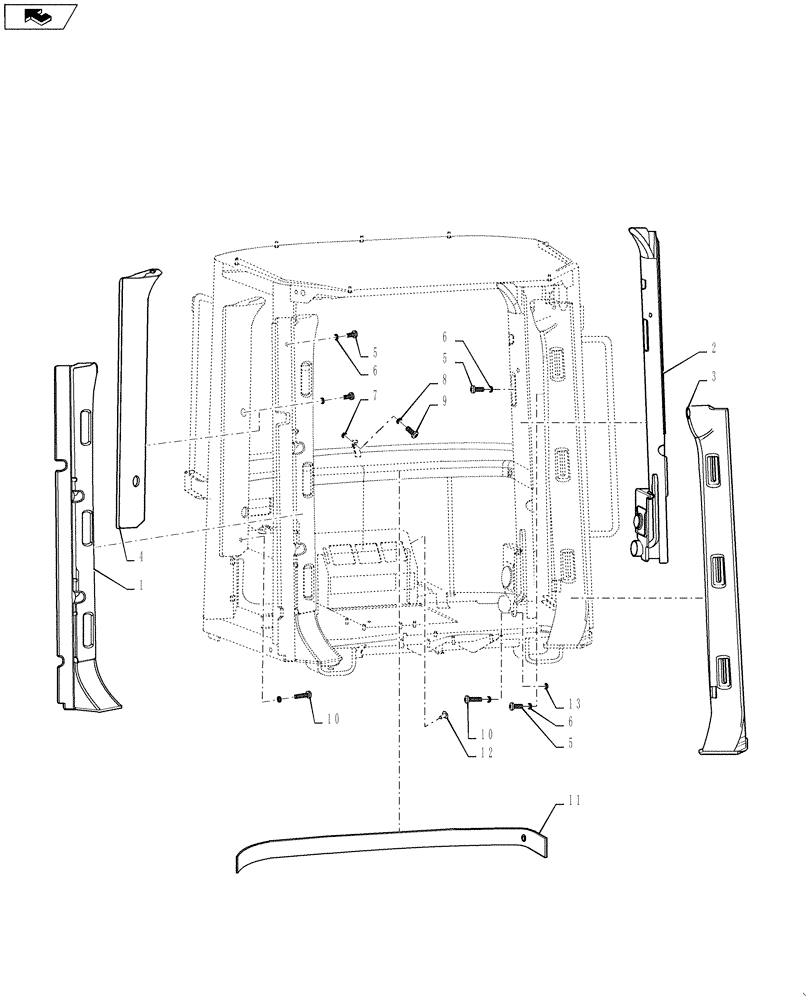

Запчасти Case 1021F (90.160.04[02]) - CAB - INTERIOR TRIM - COLUMNS - HVT ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

76303039

PILLAR

Air Passage, Front RH

1шт.

2

84169786

AIR DUCT

LH Rear

1шт.

3

76303038

TRIM PANEL

Air Passage, Front LH

1шт.

4

84378006

ACCESS COVER

RT B-Post

1шт.

5

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

8шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

7

833-40306

SPRING NUT,M6, U

3шт.

8

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Flat 6.6 x 12.0 x 1.6

3шт.

9

297850A1

SCREW,Cross Pan Hd, M6 x 16

3шт.

10

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

2шт.

11

76303029

COVER

Rear Strip

1шт.

12

369929A1

FASTENER

Christmas Tree

2шт.

13

76301020

SPRING NUT

Cage M6

1шт.
