(90.160.03[03]) - CAB - INTERIOR TRIM - ROOF - TC ONLY

Запчасти Case 1021F (90.160.03[03]) - CAB - INTERIOR TRIM - ROOF - TC ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

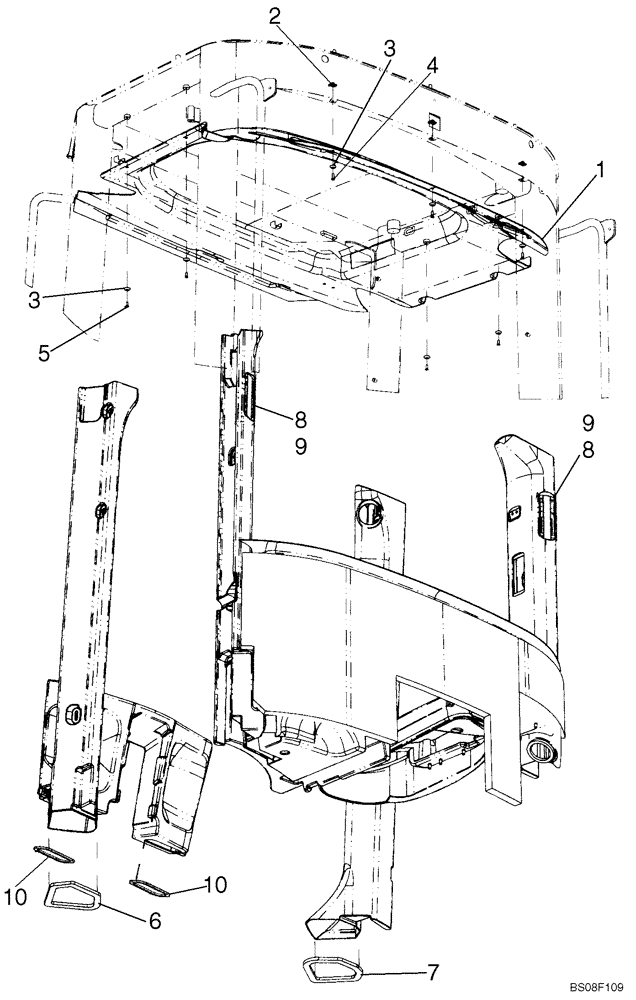

Схема запчастей Case 1021F - (90.160.03[03]) - CAB - INTERIOR TRIM - ROOF - TC ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
2
9
3
5
4
3
10
10
8
1
8
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84184658

HEADLINER

1шт.

2

833-40306

SPRING NUT,M6, U

3шт.

3

87739772

CUP WASHER

Counter Sunk, Black

7шт.

4

13313017

SCREW,Pozidriv Oval Hd, Csk, M6 x 16mm, Cl 5.8, Full Thd

3шт.

5

13313017

SCREW,Pozidriv Oval Hd, Csk, M6 x 16mm, Cl 5.8, Full Thd

4шт.

6

76303521

GASKET,10mm Thk

Front LH Column

1шт.

7

76303522

GASKET,10mm Thk

Front RH Column

1шт.

8

356789A1

FASTENER

Velcro Hook

2шт.

9

357564A1

FASTENER

Velcro Loop

2шт.

10

87735894

GASKET

Adhesive

2шт.
