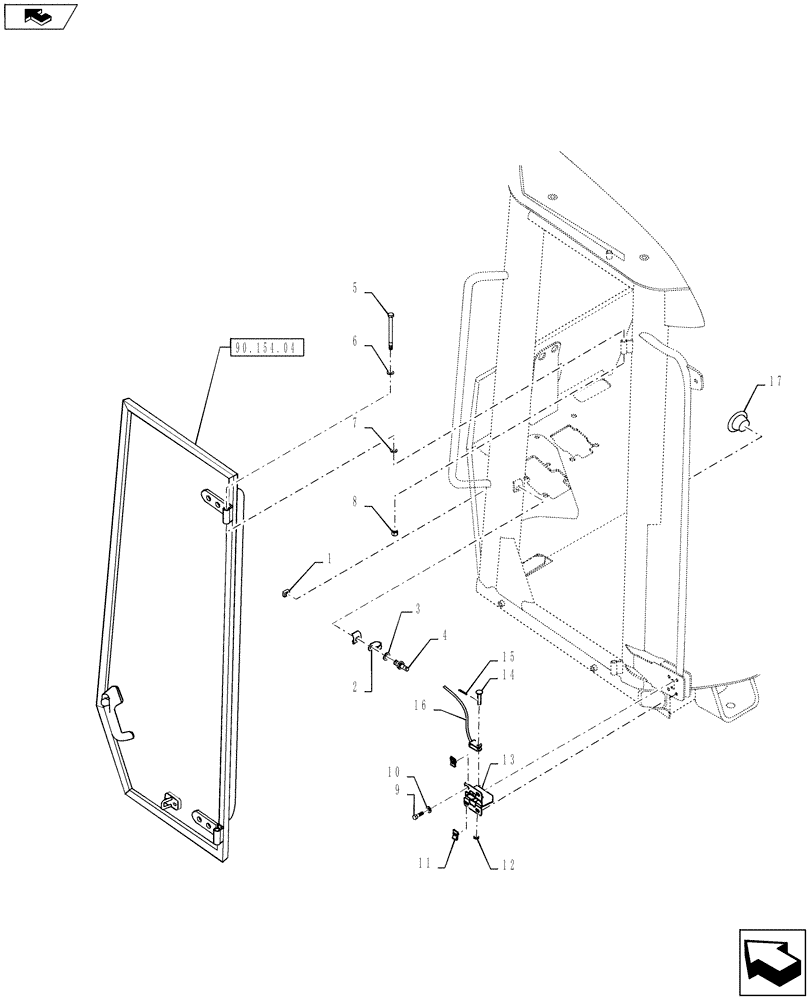

Запчасти Case 1021F (90.154.03) - CAB - DOOR MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

76067753

LOCK NUT

Door Striker Nut

1шт.

2

76048628

GUARD

Door Stop Cover

1шт.

3

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

4

76043511

LOCK BOLT

Door Striker

1шт.

5

73174475

BOLT,Hex, M10 x 120mm, Cl 10.9

2шт.

6

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

Thrust

2шт.

7

86547919

WASHER,10.3mm ID x 16.1mm OD x 2.1mm Thk

Brass

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

10

87664048

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6.6x12x1.6mm CST

4шт.

11

87016585

NUT,Spring, M6 x 1

M6 Muli-Thread Short

4шт.

12

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

13

154227178

LOCK

Latch Door

1шт.

14

71485274

PIN,5mm OD x 13mm L

Door Latch

1шт.

15

732-1610

COTTER PIN,M1.6 x 10

1шт.

16

76303589

CABLE,693mm L

Unlock Door

1шт.

17

76303157

KNOB

M6

1шт.
