Запчасти Case 1021F (90.154.01[01]) - CAB - WINDOW, RIGHT-HAND-UPPER - MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

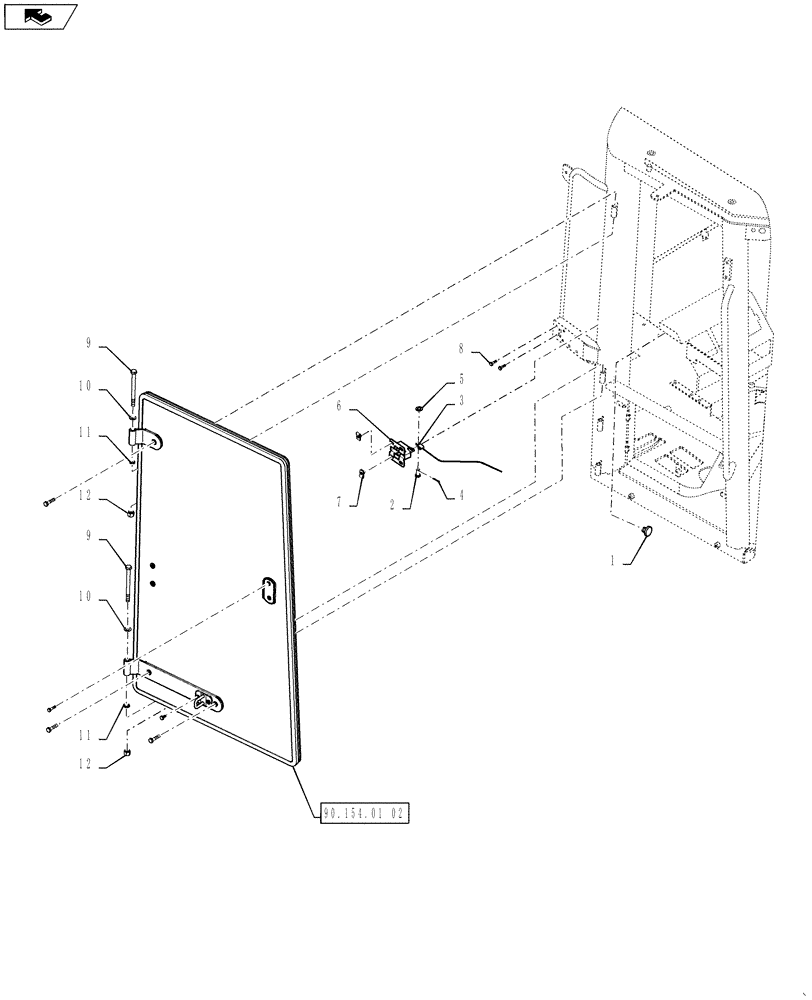

Схема запчастей Case 1021F - (90.154.01[01]) - CAB - WINDOW, RIGHT-HAND-UPPER - MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
10
8
home
10
12
2
11
3
11
5
12
4
90.154.01 02
9
9
7
6

Артикул

Название

Примечание

Количество

1

76303157

KNOB

M6

1шт.

2

71485274

PIN,5mm OD x 13mm L

Window Latch

1шт.

3

76303590

CABLE,330mm L

Window Lock; TC ONLY

1шт.

3

87751903

CABLE

Window Lock; HVT ONLY

1шт.

4

732-1610

COTTER PIN,M1.6 x 10

1шт.

5

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

6

154227178

LOCK

Window

1шт.

7

87016585

NUT,Spring, M6 x 1

M6 Multi-Thread Short

4шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

9

73174475

BOLT,Hex, M10 x 120mm, Cl 10.9

2шт.

10

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

Thrust

2шт.

11

86547919

WASHER,10.3mm ID x 16.1mm OD x 2.1mm Thk

Brass

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

Выбрано товаров: 13
