(90.150.01) - CAB/CANOPY - MOUNTING

Запчасти Case 1021F (90.150.01) - CAB/CANOPY - MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

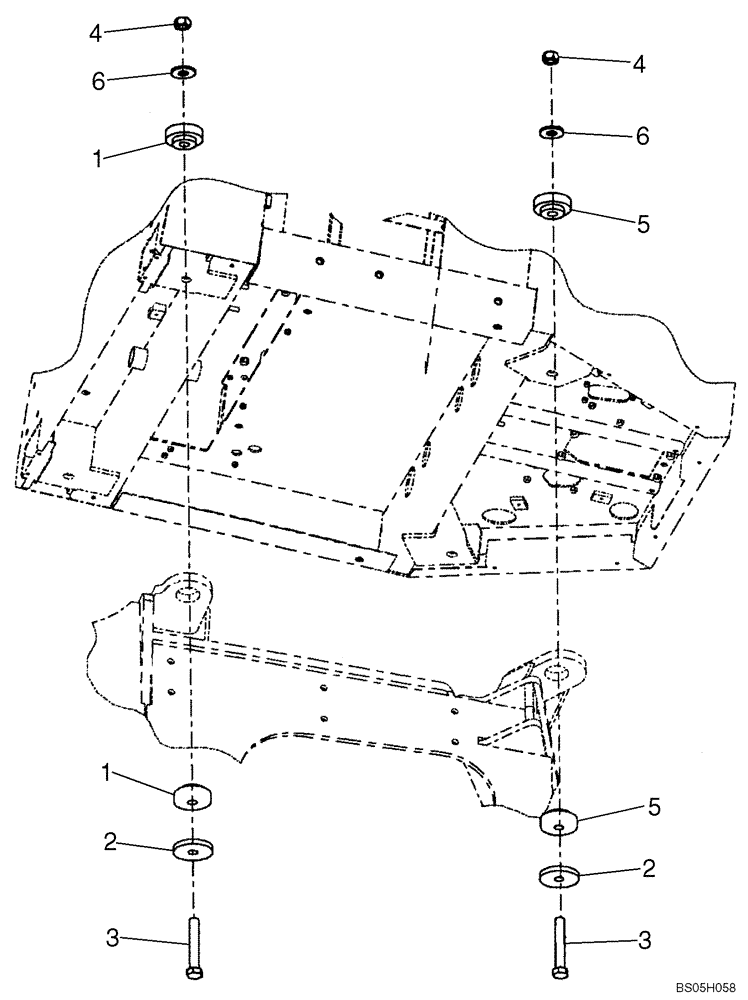

Схема запчастей Case 1021F - (90.150.01) - CAB/CANOPY - MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
3
6
4
1
4
2
2
6
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

358981A1

RUBBER MOUNTING

Cab/Canopy Support; Rear

4шт.

2

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

Special

4шт.

3

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

4

329-1014

NUT,7/8"-9, G8

4шт.

5

358982A1

RUBBER MOUNTING

Cab/Canopy Support; Front

4шт.

6

396-41094

WASHER,23.82mm ID x 57.15mm OD x 5.56mm Thk

4шт.
