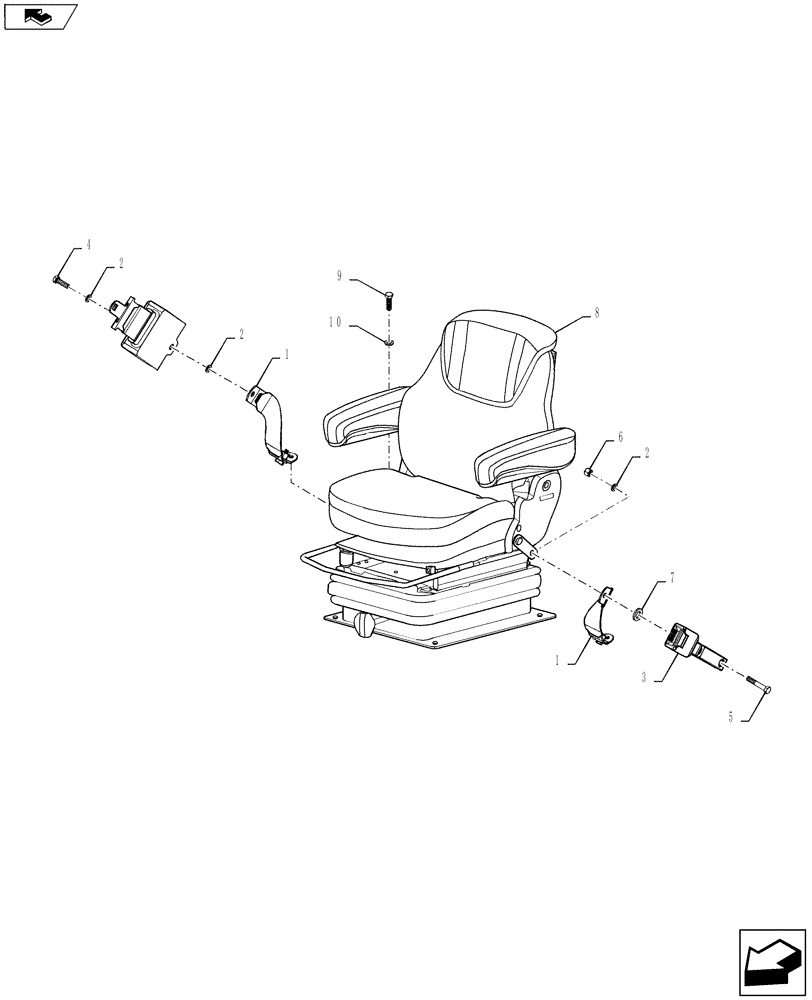

Запчасти Case 1021F (90.120.01) - SEAT HARDWARE AND BELTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87545658

KIT

Used On 3" Only, Includes Hardware

1шт.

2

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

3

249117A1

SAFETY BELT ,76.20 mm W

1шт.

3

249116A1

SAFETY BELT ,50.80 mm W

1шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Used For 3"

1шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Used For 2"

1шт.

5

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

Used For 3" And 2"

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

Used For 3" And 2"

2шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Used For 3" And 2"

1шт.

8

84160907

SEAT

Cloth, Mechanical

1шт.

8

84275732

DRIVER SEAT

Cloth, Heated, Air, EH Armrest, Uses 10 Amp Fuse

1шт.

8

84273518

SEAT

Cloth, Heated, Air, Uses 15 Amp Fuse

1шт.

9

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
